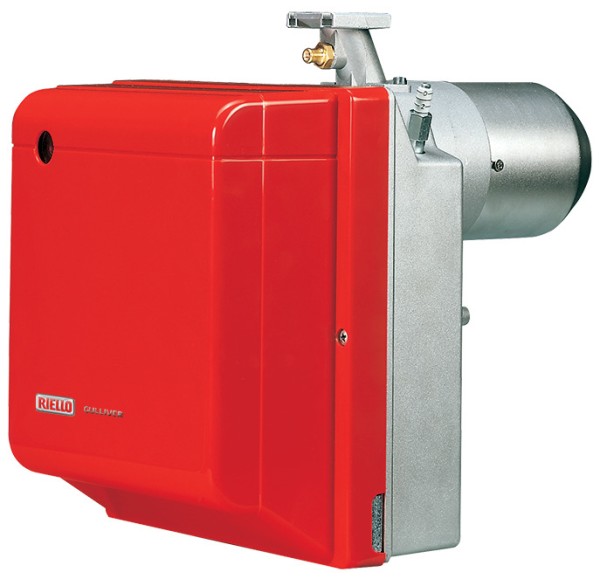

GULLIVER BSF

The Riello Gulliver BSF series of one stage gas burners, is a complete range of products developed to respond to any request for light industrial processes like bakery ovens, spray painting ovens, small steam or thermal boilers and all applications which require a reliable, user-friendly industrial product with enhanced performance and specific functions.

The Gulliver BSF series is available in four different models, with an output ranging from 16 to 246 kW, divided in four different structures.

All the models use the same components designed by Riello for the Gulliver series and have the same ventilation system and overall dimensions as the previous one stage gas models.

The burners are fitted with a microprocessor-based burner safety control box which supplies indication of operation and diagnosis of fault cause.

This new series can operates on 50 or 60 Hz and a Voltage 220 - 230 Volt (dual frequency).

All these burners are conform to the EN 676 Standard (Forced draught gas burners) and to European Directives for EMC, Low Voltage and Gas Appliance.

For depressurised working field see EN 746-2 Standard.

All the Gulliver BSF burners are fired before leaving the factory.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

GULLIVER BSF

Range documentation

Type Description Language
Product Brochure/Depliant English Download
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

ONE-STAGE (OVEN)

3761171
BS1F 1/220-230/50-60
Type Language
Homologation Certificate English, German Download
Installer Manual Italian, German, English Download
Installer Manual Italian, German Download
3761271
BS2F 1/220-230/50-60
Type Language
Installer Manual Italian, German, English Download
Installer Manual Italian, German Download
3761371
BS3F 1/220-230/50-60
Type Language
Installer Manual Italian, German, English Download
Installer Manual Italian, German Download
3761471
BS4F 1/220-230/50-60
Type Language
Installer Manual Italian, German, English Download
Installer Manual Italian, German Download
