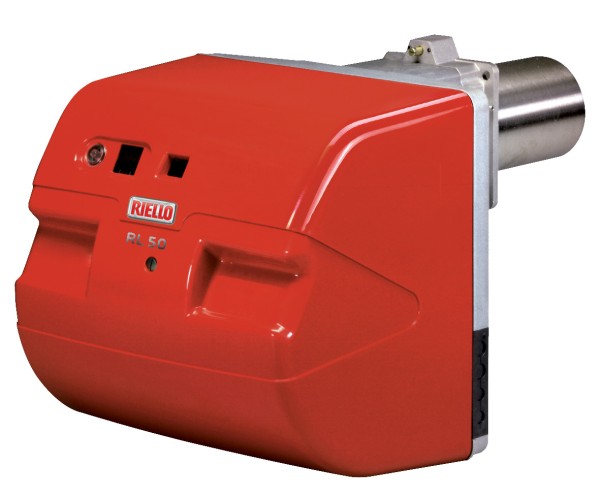

BURNERS


RL 28÷50/E

The RL/E series of burners covers a firing range from 2.4 - 65.6 GPH, and it is based on the Digital Burner Management System, LMV 37, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range.

Operation can be “two stage progressive” or, alternatively, “modulating” when are installed PID logic regulator and respective probes.

RL/E series burners guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs.

Optimization of sound emissions is guaranteed by the use of fans with reverse curve blades and sound deadening material incorporated in the air suction circuit. The Burner models of New R Series have been developed with a new Electrical Panel to Increase flexibility; and despite the integrated layout, various flame safeguards can be used and many useful accessories such as switches, indicator lights, alarm horns etc. etc. can be fitted.

On the new RL/E models, all the components for basic burner operation are included in the Electrical Panel as standard equipment, optional accessories can easily be fitted on request.

RL 28÷50/E
Type Description Language
TECHNICAL SPECIFICATIONS

ELECTRONIC MODULATING

20100849
RL 28/E 1/120/60
20118597
RL 50/E 1/120/60
20120851
RL 50/E TC 3/208-230/60
20120852
RL 50/E TC 3/460/60

Products

TECHNICAL SPECIFICATIONS

ELECTRONIC MODULATING

20100849
RL 28/E 1/120/60
20118597
RL 50/E 1/120/60
20120851
RL 50/E TC 3/208-230/60
20120852
RL 50/E TC 3/460/60

ACCESSORIES

COMBUSTION ACCESSORIES

C7005527
EXTENDED HEAD KIT

ELECTRICAL ACCESSORIES

20107665
DISPLAYS
Type Language
User Manual English Download
C7000395
WIRINGS
C7000396
INDICATION LIGHTS
20094961
RWF 55.5 MODULATOR KIT

SAFETY ACCESSORIES

C7000515
CCT KIT
