BURNERS

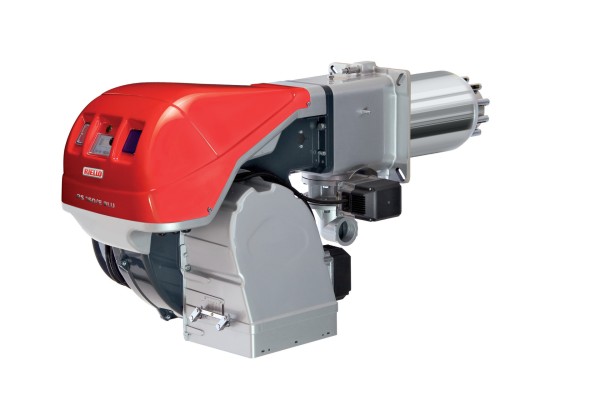

RS 68÷160/EV BLU

Quality engineered for North American emission standards, Riello R-Series low NOx gas burners are built for maximum uptime.

The Burner models of New R Series have been developed with a new Electrical Panel to Increase flexibility; and despite the integrated layout, various flame safeguards can be used and many useful accessories such as switches, indicator lights, alarm horns etc. etc. can be fitted.

On the new RS/E-EV models, all the components for basic burner operation are included in the Electrical Panel as standard equipment, optional accessories can easily be fitted on request.

The RS/E LN and RS/EV LN burners series covers a firing range from 341 to 9090 MBtu/hr, and it is based on the Digital Burner Management System, LMV 37 as standard, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes.

RS/E LN burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs; specifics versions are available to operate with Variable Speed Drive technology based on the control of a Frequency Inverter that modifies the air flow through the motor speed variation. Optimisation of sound emissions is guaranteed by the special design of the air suction circuit and by incorporated sound proofing material.

RS 68÷160/EV BLU
Type Description Language
Product Brochure/Depliant English Download
Product Brochure/Depliant English Download
TECHNICAL SPECIFICATIONS

VSD MODULATING

C9343700
RS 120/EV LN 3/230/60
Type Language
Installer Manual English Download
C9344700
RS 160/EV LN 3/208/60
C9344710
RS 160/EV LN 3/460/60
Type Language
Installer Manual English Download

Products

TECHNICAL SPECIFICATIONS

VSD MODULATING

C9343700
RS 120/EV LN 3/230/60
C9344700
RS 160/EV LN 3/208/60
C9344710
RS 160/EV LN 3/460/60

ACCESSORIES

MECHANICAL ACCESSORIES

3000722
SPACES KIT
C7005531
AIR INLET ADAPTER
C7005532
AIR INLET ADAPTER

COMBUSTION ACCESSORIES

C7005527
EXTENDED HEAD KIT

ELECTRICAL ACCESSORIES

20107665
DISPLAYS
Type Language
User Manual Download
C7000390
Ground fault interrupter kit
C7000395
WIRINGS
C7000396
INDICATION LIGHTS
C7000510
TRANSFORMERS
20094961
RWF 55.5 MODULATOR KIT

OTHER ACCESSORIES

C7005511
GAS TRAIN ASSEMBLY
C7005522
GAS TRAIN ASSEMBLY
