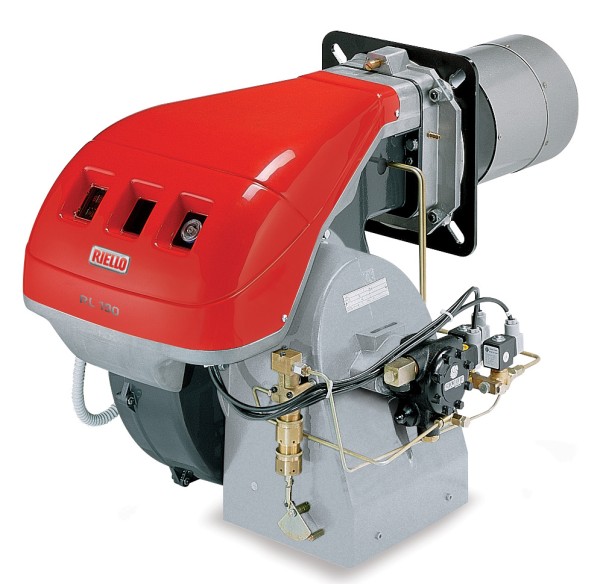

BURNERS


RL 70÷190/E

The RL/E series of burners covers a firing range from 2.4 - 65.6 GPH, and it is based on the Digital Burner Management System, LMV 37, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range.

Operation can be “two stage progressive” or, alternatively, “modulating” when are installed PID logic regulator and respective probes.

RL/E series burners guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs.

Optimization of sound emissions is guaranteed by the use of fans with reverse curve blades and sound deadening material incorporated in the air suction circuit. The Burner models of New R Series have been developed with a new Electrical Panel to Increase flexibility; and despite the integrated layout, various flame safeguards can be used and many useful accessories such as switches, indicator lights, alarm horns etc. etc. can be fitted.

On the new RL/E models, all the components for basic burner operation are included in the Electrical Panel as standard equipment, optional accessories can easily be fitted on request.

RL 70÷190/E
Type Description Language
TECHNICAL SPECIFICATIONS

ELECTRONIC MODULATING

20142075
RL 70/E 3/230/60
20102536
RL 70/E 3/460/60
Type Language
Installer Manual English Download
20092551
20116588
RL 130/E 3/575/60
20090948
RL 190/E 3/230/60
20074606
RL 190/E 3/460/60
Type Language
Installer Manual English Download

Products

TECHNICAL SPECIFICATIONS

ELECTRONIC MODULATING

20142075
RL 70/E 3/230/60
20102536
RL 70/E 3/460/60
20092551
20116588
RL 130/E 3/575/60
20090948
RL 190/E 3/230/60
20074606
RL 190/E 3/460/60

ACCESSORIES

COMBUSTION ACCESSORIES

C7005527
EXTENDED HEAD KIT

ELECTRICAL ACCESSORIES

20107665
DISPLAYS
Type Language
User Manual English Download
C7000390
Ground fault interrupter kit
C7000395
WIRINGS
C7000396
INDICATION LIGHTS
C7000510
TRANSFORMERS
20094961
RWF 55.5 MODULATOR KIT

MECHANICAL ACCESSORIES

C7005531
AIR INLET ADAPTER
C7005532
AIR INLET ADAPTER
