DOMUS HYBRID

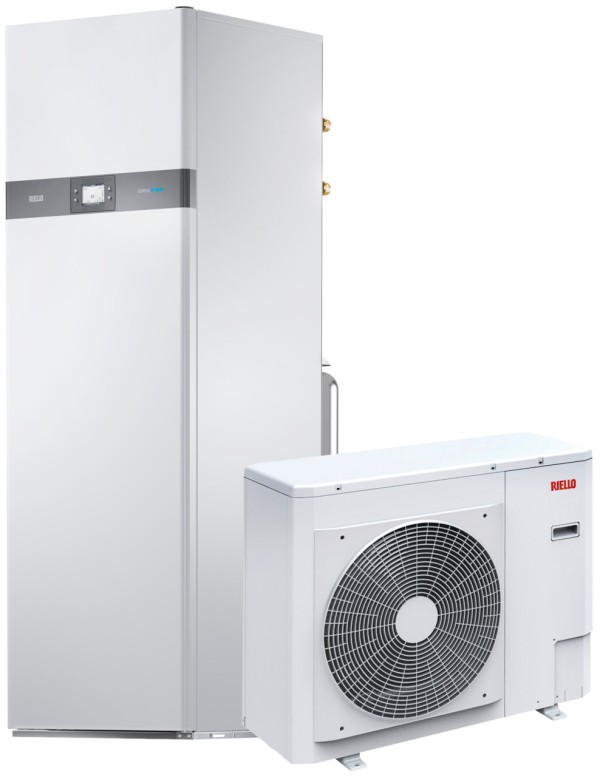

Domus Hybrid is a multi-energy hybrid system for heating, summer cooling and domestic hot water production, consisting of column unit housing a condensing gas boiler, a 200 litre heater with double coil and a control panel with system intelligence.

Domus Hybrid can be combined with NXH series air/water monobloc heat pumps for hybrid systems.

All components of the hybrid system interact with each other via communication BUS.

– Condensing boiler inside the column unit, available with the 2 powers of 25 and 35 kW with condensing heat exchanger, 1: modulation ratio and "Range Rated" certification that allows the nominal power to be adjusted to the actual heat demand of the system.

– Column unit equipped with hydraulic separator, diverting valve for domestic hot water production, 200 litre double coil heater, prearranged for control of a direct zone through a low consumption self-modulating circulator. Up to 2 additional zone control kits can be installed inside the column unit, each one with low-consumption self-modulating circulator, order to manage up to 3 independent temperature zones.

– Control panel for the entire system with large, intuitive and descriptive display; the panel is the system intelligence, capable of activating the most energy-efficient heat source. It can be removed from the column unit and installed inside the house.

– Intelligent system filling that can be activated from system control panel.

– It can be combined with a monobloc air-water heat pump equipped with BUS communication with the system intelligence, available with 5, 7, 11 and 15 kW power.

  • Heating, cooling and domestic hot water production
  • Intelligent management of two energy sources: condensing boiler and heat pump
  • Possibility to control up to 3 indoor zones
DOMUS HYBRID

Range documentation

Type Description Language
Technical-commercial sheet Download
Conformity declaration Download
Conformity declaration Download
Conformity declaration Download
Conformity declaration Download

Products

TECHNICAL DATA

VERSION WITH SEALED CHAMBER AND FORCED DRAUGHT-HEATING AND DOMESTIC HOT WATER PRODUCTION

20120778
DOMUS HYBRID 25 B/200
Type Language
BIM model English Download
Energy Label English Download
Homologation Certificate Italian, English Download
Homologation Certificate Italian, English Download
20120779
DOMUS HYBRID 35 B/200
Type Language
BIM model English Download
Energy Label English Download
Homologation Certificate Italian, English Download
Homologation Certificate Italian, English Download
