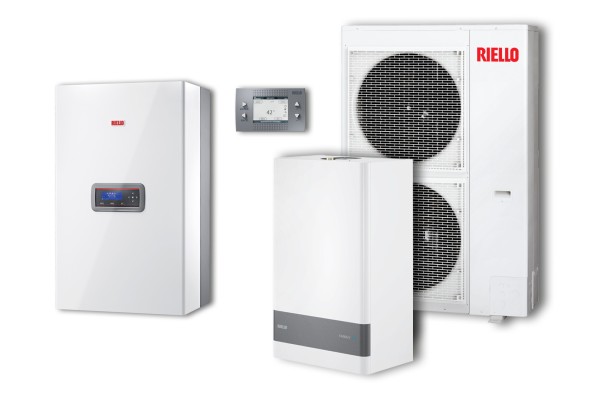

The Hybrid PRO wall-hung system is a multi-energy hybrid system for room heating and domestic hot water production. This system is made by combining three main components together:
– Stand alone wall-hung boiler of the CONDEXA PRO series, available in versions ranging from 34.9 up to 112 kW of heat input, to be installed internally either in open chamber or sealed configuration. The range is equipped, respectively, with a single smooth tube heat exchanger with “P” section on models 35-50 P and with a heat exchanger with two concentric stainless steel tubes, either in open chamber pentagonal section on the inside and circular section on the outside on models 90÷115.
The primary circuit pump with modulating regulation (standard on models 35÷70 P, optional on models 90÷112) allows operating with a constant and settable ΔT, thus reducing the system set-up time and maximising condensation. The optimal management of combustion and the high modulation ratios (1:5) allow high efficiency and low polluting emissions (Class 6 according to UNI EN 15502-1). Maximum operating pressure: 6 bar. Included as standard: boiler drain cock, LPG transformation kit and wall bracket.
– FAMILY ES series split heat pump, available in versions ranging from 12 up to 25 kW, with wall-hung indoor unit for heating and domestic hot water production. The outdoor unit, compact and quiet, includes a Twin Rotary DC inverter compressor, electronic expansion valve, fans with brushless motor and finned pack coil optimized for heat pump operation even with outdoor air temperature of -20°C. The indoor unit houses the main components of the hydronic system, high surface plate exchanger and high-efficiency electronic circulation pump. The outdoor unit also stands out for its extreme compactness, with all the hydraulic and cooling connections in the lower part of the unit.
– Simple and intuitive control panel with large backlit display, featured by advanced management logics of the hybrid system, in order to ensure maximum efficiency by giving priority to the most efficient heat source according to the outside temperature. The panel allows the full parametrisation of the system, as well as displaying the operating status. It is supplied with heat pump, complete with bracket, to be positioned directly inside the rooms.
A wide range of accessories is available to complete the system and ensure simple, fast installation in order to meet different installation requirements.
TECHNICAL DATA - THE CODES BELOW ALWAYS REFER TO THE COMBINATION OF INDOOR AND OUTDOOR UNITS
