HYBRID PRO FLOOR-STANDING SYSTEM

The Hybrid PRO floor-standing system is a multi-energy hybrid system for room heating and domestic hot water production.

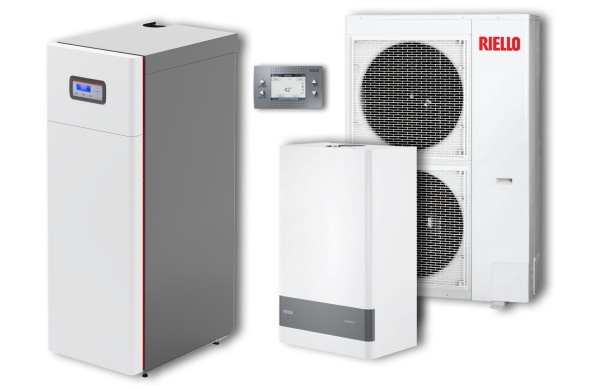

This system is made by combining three main components together:

– Stand alone floor-standing boiler of the TAU UNIT series, available in versions ranging from 34.9 up to 115 kW of heat input, to be installed internally either in open chamber or sealed configuration. This range is equipped with a high water content heat exchanger with vertical flue gas tubes, allowing an effective stratification of the water and ensuring that high-temperature water will be in the upper part of the unit, while cold water will accumulate in the lower part, where condensation takes place. The optimal management of combustion and the high modulation ratio (1:10) allow high efficiency and low polluting emissions (NOx in Class 6 according to UNI EN 15502-1). Maximum operating pressure: 5 bar.

– FAMILY ES series split heat pump, available in versions ranging from 12 up to 25 kW, with wall-hung indoor unit for heating and domestic hot water production. The outdoor unit, compact and quiet, includes a Twin Rotary DC inverter compressor, electronic expansion valve, fans with brushless motor and finned pack coil optimized for heat pump operation even with outdoor air temperature of -20°C. The indoor unit houses the main components of the hydronic system, high surface plate exchanger and high-efficiency electronic circulation pump. The outdoor unit also stands out for its extreme compactness, with all the hydraulic and cooling connections in the lower part of the unit.

– Simple and intuitive control panel with large backlit display, featured by advanced management logics of the hybrid system, in order to ensure maximum efficiency by giving priority to the most efficient heat source according to the outside temperature. The panel allows the full parametrisation of the system, as well as displaying the operating status. It is supplied with heat pump, complete with bracket, to be positioned directly inside the rooms.

A wide range of accessories is available to complete the system and ensure simple, fast installation in order to meet different installation requirements.

  • Heating and domestic hot water production
  • Intelligent management of multiple energy sources: condensing boiler, solar thermal and heat pump
  • Large display for setting and monitoring the entire system
  • Possibility to control up to 3 independent zones
HYBRID PRO FLOOR-STANDING SYSTEM

Products

FLOOR-STANDING BOILERS

TECHNICAL DATA

20145133
TAU UNIT 35
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer Manual English Download
User Manual English Download
20144105
TAU UNIT 50
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer Manual English Download
20144106
TAU UNIT 70
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer Manual English Download
20144107
TAU UNIT 100
Type Language
Homologation Certificate English Download
Installer Manual English Download
20144108
TAU UNIT 115
Type Language
Homologation Certificate English Download
Installer Manual English Download
HEAT PUMPS

TECHNICAL DATA - THE CODES BELOW ALWAYS REFER TO THE COMBINATION OF INDOOR AND OUTDOOR UNITS

20181797
FAMILY ES 12M
Type Language
BIM model English Download
20181805
FAMILY ES 15M
Type Language
BIM model English Download
20181803
FAMILY ES 12T
Type Language
BIM model English Download
20181806
FAMILY ES 15T
Type Language
BIM model English Download
20181807
FAMILY ES 18T
Type Language
BIM model English Download
20181809
FAMILY ES 25T
Type Language
BIM model English Download
STORAGE TANKS TO BE MATCHED

TECHNICAL DATA

20082450
7000 ACI 120 PLUS
Type Language
Energy Label Download
Conformity declaration Italian, English Download
Installer + User Manual English Download
20028093
7000 ACI 200 PLUS
Type Language
Energy Label Download
Conformity declaration Italian, English Download
Installer + User Manual English Download
20028094
7000 ACI 300 PLUS
Type Language
Energy Label Download
Conformity declaration Italian, English Download
Installer + User Manual English Download

You can also add to the product...

RiCLOUD SMART REMOTE CONTROL

RiCloud modulating control system with possibility of management via APP

20117399
RiCLOUD
20117359
RF-wireless boiler receiver

Products to match your system

DHW CYLINDERS TO BE MATCHED

TECHNICAL DATA

4383500
7200 300 HP
4383501
7200 HP 500
20136293
7200 HP 800
20124170
RBC 430 1S
20124171
RBC 550 1S
20132270
RBC 800 1S
20132271
RBC 1000 1S
20117339
Rbs 430 2S
20116587
RBS 550 2S
20132268
RBS 800 2S
20132269
RBS 1000 2S
20136237
7200/2-1500 HV PLUS
20136239
7200/2-2000 HV PLUS

SOLAR COLLECTORS TO BE MATCHED

TECHNICAL DATA

20127134
RPS 25/2 EVO
20127137
RPS 25/4
20094521
CSAL 20 RS
20023353
CSV 25 R
