IN INVERTER

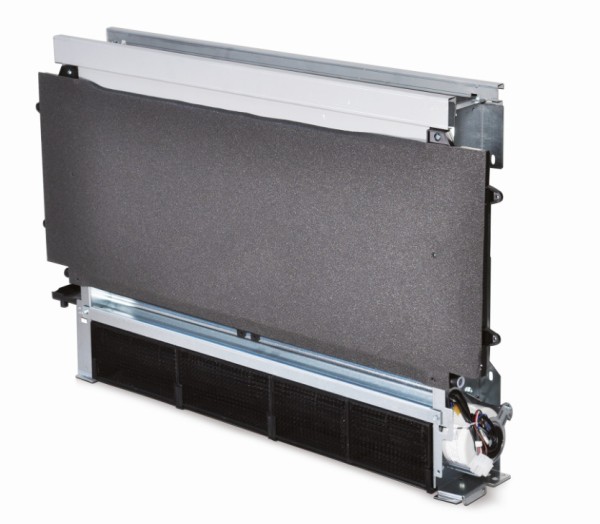

IN INVERTER is the Riello proposal for fan coils for recessed installation, allowing you to rationalise the space according to the criteria of modern interior architecture. The unit can be recessed in walls that are relatively thin, thanks to the just 12.6 cm deep box.

The entire range comes with DC Brushless Inverter motors. This technological solution provides a continuous variation from 0 to 100% of the air flow rate and as a result the heating and cooling capacity.

IN INVERTER quickly heats and cools any room; with the possibility of choosing between two dedicated functions: PERFORMANCE for commercial needs, when high efficiency and high effectiveness are required, and COMFORT for residential needs, to ensure always maximum low-noise operation.

Thanks to the DC Brushless motors, the IN INVERTER range has an electrical consumption that is 50% lower than fan coils with traditional motors (ON/OFF type). The range comes in 5 models with (PLUS model) and without radiant effect, with a cooling capacity from 830 W up to 4560 W and a heating capacity from 1090 W up to 4860 W.

The vast range of accessories and controls with DISPLAY support a wide range of applications.

All IN INVERTER versions can be installed vertically or horizontally (using a specific accessory), with standard connections on the left (on the right with the relative accessory).

The IN INVERTER PLUS versions can be installed vertically with connections on the left.

The structure is made of zinc-coated sheet metal.

– Ultra low-noise operation

– Just 12,6 cm deep

– Wide range of accessories

– Filters easy to dismount and clean

Fan coils with Brushless inverter motor for recessed installation in the wall
IN INVERTER

Range documentation

Type Description Language
Technical-commercial sheet Download
Technical-commercial sheet Download
Product Brochure/Depliant Download
Product Brochure/Depliant Download

Products

TECHNICAL DATA

FAN COIL FOR RECESSED INSTALLATION

20069349
IN INVERTER 11
Type Language
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
20069370
IN INVERTER 21
Type Language
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
20069371
IN INVERTER 33
Type Language
Conformity declaration Italian, English Download
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
20069372
IN INVERTER 40
Type Language
Conformity declaration Italian, English Download
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
20069373
IN INVERTER 46
Type Language
Conformity declaration Italian, English Download
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
