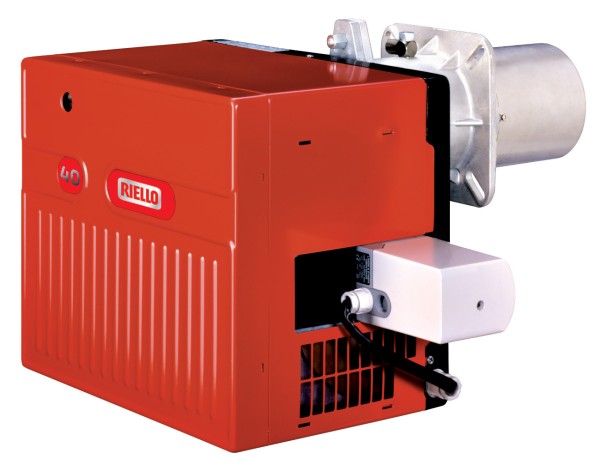

RIELLO 40 GS/M

The Riello 40 GS/M series of two stage progressive or modulating gas burners, is a complete range of products developed to respond to any request of gas burners for hot air generator according to EN 1020. These new models complete the Riello 40 gas series which prides itself on many years of experience in all the world in the field of residential heating and soft industrial applications. This series of burners is available in two different models with an output ranging from 42 to 194 kW, divided in two different structures. Basic version of these models has two stage progressive operation. A simple modification, adding a component, permits obtaining modulating operation with a rate 1:4. The burners are supplied air fuel ratio control gas trains.

This more advanced version can better satisfy market needs for applications where modulation is requested to obtain highest plant efficiency. In developing these burners, special attention was paid to the ease of installation and adjustment, to maintaining the smallest size possible and obtaining high performance for modulating operation to fit into any sort of application available on the market. All the models are approved by the EN 676 European Standard and they conform to European Directives: Gas Appliances, EMC, Low Voltage and Boiler Efficiency.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

RIELLO 40 GS/M

Range documentation

Type Description Language
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

MECHANICAL MODULATING

20066426
R40 GS10/M 1/220/60
Type Language
Installer Manual English, Spanish Download
Installer Manual Italian, English, French, German, Spanish, Portuguese, Dutch, Danish, Greek, Swedish Download
3091960
R40 GS20/M 1/220/60
Type Language
Installer Manual English, French, German, Italian, Spanish Download
3755556
R40 GS10/M 1/230/50
Type Language
Installer Manual English, Italian, French, German, Spanish Download
3755756
R40 GS20/M 1/230/50
Type Language
Installer Manual English, Italian, French, German, Spanish Download
