GULLIVER BSD

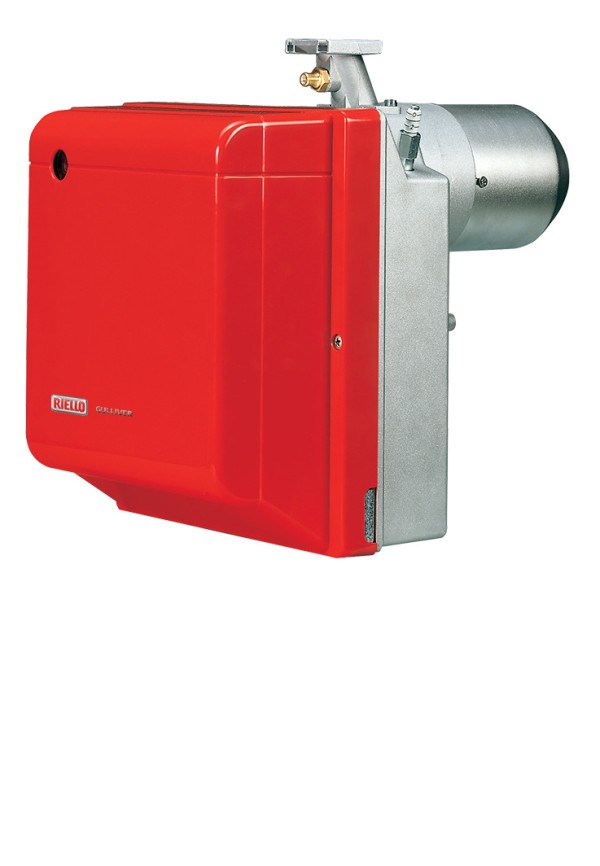

The Riello Gulliver BSD series of two stage gas burners, is a complete range of Low NOx emission products, developed to respond to any request for home heating, conforming to the most severe standards regarding the reduction of polluting emissions.

This series of burners is available in four different models with an output ranging from 16 to 250 kW, divided in four different structures.

All the models use the same components designed by Riello for the Gulliver series. The high quality level guarantees safe working. The burners are fitted with a microprocessorbased burner safety control box which supplies indication of operation and diagnosis of fault cause.

In developing these burners, special attention was paid to reducing noise, the ease of installation and adjustment, to obtaining the smallest size possible to fit into any sort of boiler available on the market.

Two stage working guarantees high level performance from the thermal unit. All the models are approved by the EN 676 European Standard and conform to European Directives, Gas Appliance, EMC, Low Voltage, Boiler Efficiency. All the Gulliver BSD burners are tested before leaving the factory.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

GULLIVER BSD

Range Documentation

Type Language
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

TWO-STAGE

3761558
BS1D 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Homologation Certificate English,German Download
3761658
BS2D 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
Homologation Certificate English,German Download
3761618
BS2D TL 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Homologation Certificate English,German Download
3761758
BS3D 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
Homologation Certificate English,German Download
3761718
BS3D TL 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Homologation Certificate English,German Download
3761858
BS4D 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
Homologation Certificate English,German Download
3761818
BS4D TL 1/230/50
Type Language
Installer Manual Download
Installer Manual Download
Homologation Certificate English,German Download
