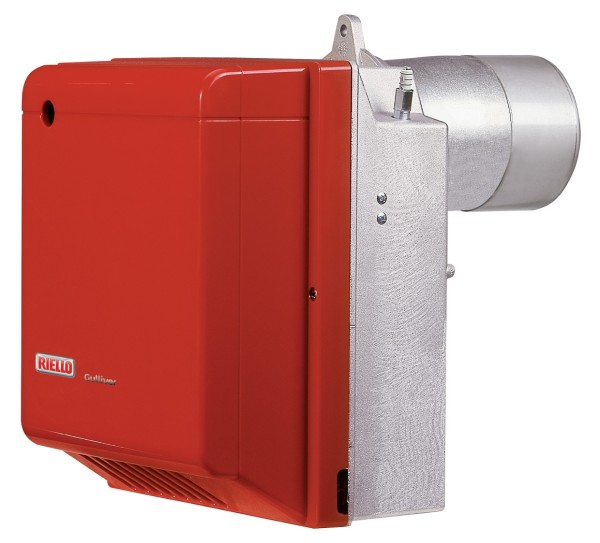

GULLIVER RGF

The Riello Gulliver RGF series of one stage light oil burners, is a complete range of products developed to respond to any request for light industrial processes like bakery ovens, spray painting ovens, small steam or thermal boilers and all applications which require a reliable, user-friendly industrial product with enhanced performance and specific functions.

The Gulliver RGF series is available in four different models, with an output ranging from 32 to 237 kW, divided in three different structures.

All the models use the same components designed by Riello for the Gulliver series and have the same ventilation system and overall dimensions as the previous one stage light oil models.

This new series can operates on 50 or 60 Hz and a Voltage 220 - 230 Volt (dual frequency).

All these burners are conform to the EN 267 Standard (Forced draught oil burners) and to European Directives for EMC, Low Voltage and Machinery.

For depressurised working field see EN 746-2 Standard.

All the Gulliver RGF burners are fired before leaving the factory.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

GULLIVER RGF

Range documentation

Type Description Language
Product Brochure/Depliant English Download
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

ONE-STAGE (OVEN)

3736370
RG1F 1/220-230/50-60
Type Language
Installer Manual Italian, English, French, German, Dutch, Spanish, Portuguese, Danish, Swedish, Norwegian, Russian, Polish, Bulgarian, Turkish, Greek, Arabic Download
Installer Manual English, Spanish Download
Installer Manual Italian, German, French, English, Spanish, Dutch Download
3737770
RG2F 1/220-230/50-60
Type Language
Installer Manual Italian, German, French, English, Spanish Download
Installer Manual Italian, German, French, English, Spanish, Dutch Download
3739380
RG3F 1/220-230/50-60
Type Language
Installer Manual Italian, English Download
Installer Manual German, English, Spanish Download
3739680
RG4F 1/220-230/50-60
Type Language
Installer Manual Italian, English Download
Installer Manual Italian, German, French, English, Dutch Download
