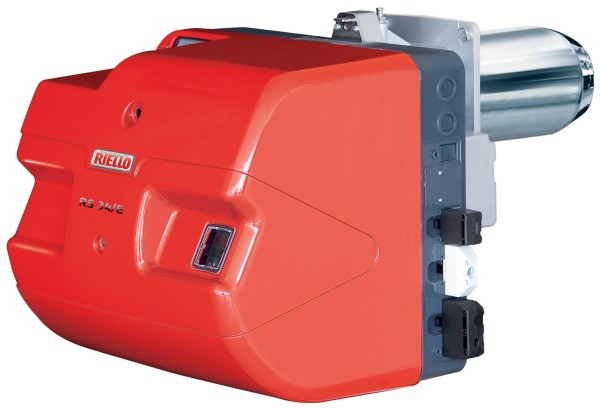

RS 34÷44/E

The RS/E-EV MZ burners series covers a firing range from 44 to 2650 kW, and it is based on a new Digital Burner Management System, Riello REC27, which is able to manage the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct combustion and safe operation on all modulation range. Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes. RS/E MZ burners series guarantees high efficiency levels in all the various applications, thus reducing fuel consumption and running costs.

The RS 250/EV MZ model, equipped with REC37, is available to operate with Variable Speed Drive technology base on the control of a Frequency Inverter that modifies the air flow through the motor speed variation.

Optimisation of sound emissions is guaranteed by the special design of the air suction circuit and by incorporated sound proofing material.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

RS 34÷44/E

Range Documentation

Type Language
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

ELECTRONIC MODULATING

3789410
RS 34/E MZ TC FS1 1/220-230/50-60 220-230/50-60
Type Language
Installer Manual Download
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
3789411
RS 34/E MZ TL FS1 1/220-230/50-60 220-230/50-60
Type Language
Installer Manual Download
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
3789510
RS 44/E MZ TC FS1 1/220-230/50-60 220-230/50-60
Type Language
Installer Manual Download
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
Conformity declaration Italian,English Download
3789511
RS 44/E MZ TL FS1 1/220-230/50-60 220-230/50-60
Type Language
Installer Manual Download
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
Conformity declaration Italian,English Download
3789540
RS 44/E MZ TC FS1 3/220-400/50-60 220-230/50-60
Type Language
Installer Manual Download
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
3789541
RS 44/E MZ TL FS1 3/220-400/50-60 220-230/50-60
Type Language
Installer Manual Download
Installer Manual Download
Installer Manual Download
Conformity declaration Italian,English Download
