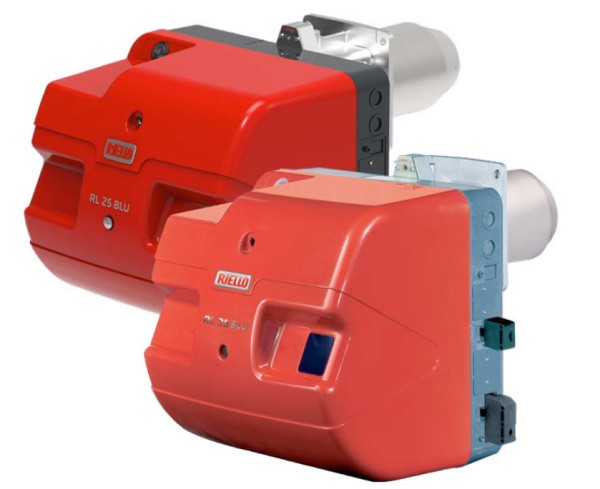

RL 25/1 BLU

The new RL/1 BLU series represents Riello’s last step of innovation in terms of Low NOx technology applied to light oil burners.

The series includes one model, with an output ranging from 115 to 260 kW. This new burner has been re-designed for use in hot or superheated water boilers, hot air , steam generators or diathermic oil boilers. The burners are fitted with a microprocessor-based control panel, which supplies indication of burner status and fault causes.

A new , more compact and handable case has been designed, keeping overall dimensions compact in order to ensure an easier servicing and maintenance.

The elevated performance of the forward-blades fan, together with a new innovative combustion head, guarantee flexibility of use and excellent working at all firing rates always with Low NOx emissions.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

RL 25/1 BLU

Range Documentation

Type Language
Technical-commercial sheet Download
Installer Manual Download
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

ONE-STAGE

20156024
RL 25/1 BLU TC FS1 1/230/50 230/50-60
Type Language
Installer Manual English,Spanish Download
20157095
RL 25/1 BLU TL FS1 1/230/50 230/50-60
Type Language
Installer Manual English,Spanish Download
