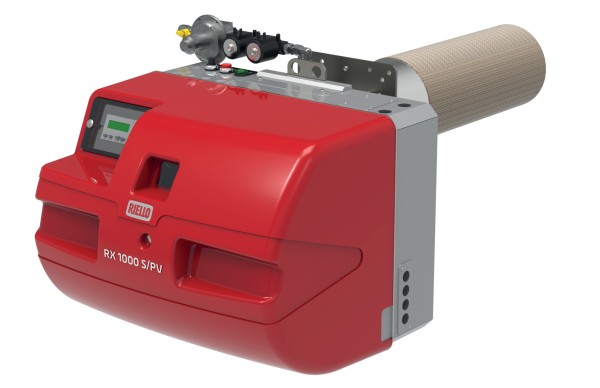

RX 5÷1 S/PV ULN

The gas burners in the Riello RX S/PV ULN range have been designed and developed by Riello with premix combustion technology. They represent the best solutions for low polluting emissions and develop high modulation ratios.

In the RX S/PV ULN burners, the perfect mixture of air and gas is created inside the burner suction line circuit. The air/gas mixture is distributed in the combustion head or “support”. It consists of a metal cylinder with dedicated surface holes for mixture outlet.

Thanks to this premix technology, combustion occurs close to the metal mesh and the support, resulting in a very compact flame.

It also reduces the probability of contact between the flame and the walls of the combustion chamber. The result is that this head type can be combined with a variety of combustion chambers and is highly flexible when matching equipment.

The function can be either “two-stage progressive” or “modulating”. Specifically, RX S/PV burners have an exclusive brushless motor, designed by Riello which controls the fan speed, and proportional gas valves. These combine to provide perfect control of the output.

The air-gas mixture efficiency and output control, combined with the premix combustion head, guarantees low polluting emissions, high combustion efficiency, and high turn-down ratios (up to 6:1). Furthermore, the burner is fired by pilot flame to guarantee regular start up even under conditions with excess air.

The combustion heads of all RX S/PV ULN models are equipped with the RRD (Resonance Reduction Device) that minimizes all possible resonance phenomena. The output hole shape has been specifically designed to optimize the air/gas mixture speed to avoid any potential hazard due to flame return across the entire modulating range.

IMPORTANT NOTE:

During the installation of a Riello premix burner in the RX S/PV ULN range, a number of parameters must be taken into consideration. These include the boiler type the burner will be installed on, the boiler door thickness, the type of gas used, the frequence of maintenance and service interventions, the stack pressure, etc.

Any order that includes the Riello RX S/PV ULN range of burners is the product an in-depth preliminary study of the future of the installation. It is accompanied by a detailed quotation prepared by Riello sales offices and/or technicians.

  • Premix gas burners
  • Low NOx emissions (NOx ≤ 3 mg/Nm3)
  • Compact flame (Riello patented combustion head with metal fiber mesh)
  • Modulation with variable rpm brushless motor
  • Three (3) models from 8 to 18 kW
  • Turn-down ratio up to 1:6
  • Firing with pilot flame
  • Operation with natural gas and LPG
RX 5÷1 S/PV ULN

Products

TECHNICAL SPECIFICATIONS

VSD MODULATING

20148872
RX 500 S/PV ULN FS1 1/230/50-60 230/50-60
Type Language
BIM model English Download
20148874
RX 700 S/PV ULN FS1 1/230/50-60 230/50-60
Type Language
BIM model English Download
Installer Manual English Download
20148875
RX 850 S/PV ULN FS1 1/230/50-60 230/50-60
Type Language
BIM model English Download
Installer Manual English Download
20148877
RX 1000 S/PV ULN FS1 3/400/50-60 230/50-60
Type Language
BIM model English Download
Installer Manual English Download
