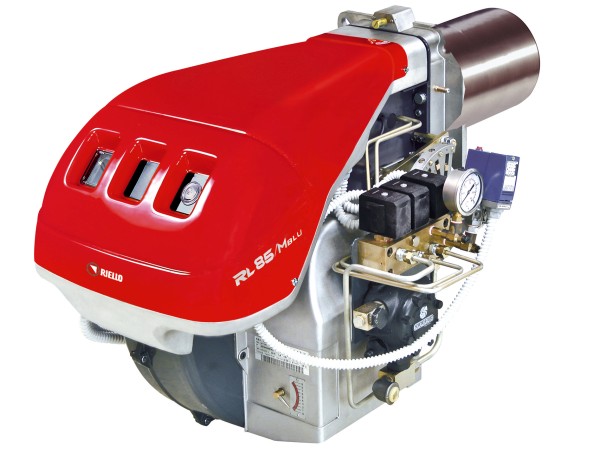

RL/M BLU

The RL/M BLU burners series covers a firing range from 360 to 1023 kW, and it has been designed for use in hot or superheated water boilers, hot air or steam generators and diathermic oil boilers.

Operation can be “two stage progressive” or, alternatively, “modulating” with the installation of a PID logic regulator and respective probes.

RL/M BLU burners series guarantees high efficiency levels in all applications, thus reducing fuel consumption and running costs.

Sound emissions optimisation is guaranteed by the use of fans with reverse curve blades and sound deadening material incorporated in the air suction circuit.

The exclusive design ensures reduced dimensions, simple use and maintenance. A wide range of accessories guarantees elevated working flexibility.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

RL/M BLU

Range Documentation

Type Language
Installer Manual Download

Products

TECHNICAL SPECIFICATIONS

MECHANICAL MODULATING

20169338
RL 55/M BLU TC FS1 3/230-400/50 230/50-60
Type Language
BIM model English Download
Installer Manual Italian,English,French,German,Spanish,Portuguese,Dutch,Danish,Greek,Swedish Download
Installer Manual Italian,French,English,Dutch,German,Danish,Spanish,Swedish,Portuguese,Norwegian,Greek,Turkish Download
Installer Manual English Download
20169330
RL 85/M BLU TC FS1 3/230-400/50 230/50-60
Type Language
BIM model English Download
Conformity declaration Italian,English Download
Installer Manual Italian,English,French,German,Spanish,Portuguese,Dutch,Danish,Greek,Swedish Download
Installer Manual Italian,French,English,Dutch,German,Danish,Spanish,Swedish,Portuguese,Norwegian,Greek,Turkish Download
Installer Manual English Download
