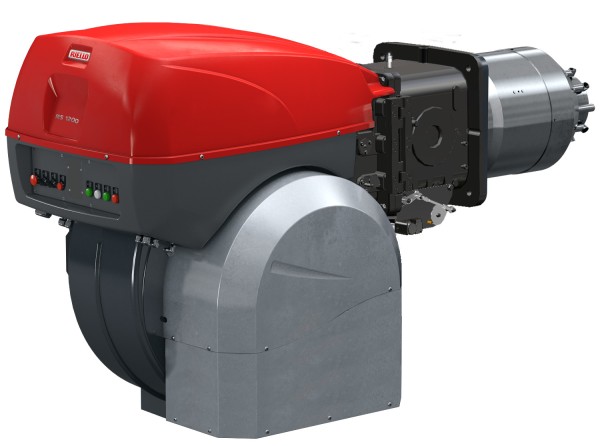

The RS 1000-1200/M BLU burners are characterised by a monoblock structure which means that all necessary components are combined in a single unit, making installation easier and faster.
The burners cover a firing range from 4000 to 11100 kW, and they have been designed for use in hot water boilers or industrial steam generators.
Operation can be “two stage progressive” or alternatively “modulating” with the installation of a PID logic regulator or by external 4-20 mA/0-10 V signal.
The mechanical cam device of regulation allows to catch up a high modulation ratio on all firing rates range.
The burners can, therefore, supply with precision the demanded power, guaranteeing a high efficiency system level and the stability setting, obtaining fuel consumption and operating costs reduction.
The combustion head, engineered with advanced simulation devices, guarantees reduced polluting emissions (NOx < 80 mg/kWh).
FS1 and FS2 versions are available for intermittent and continuous operation applications.
An exclusive design, guarantees low sound emissions, low electrical consumption, easy use and maintenance.
