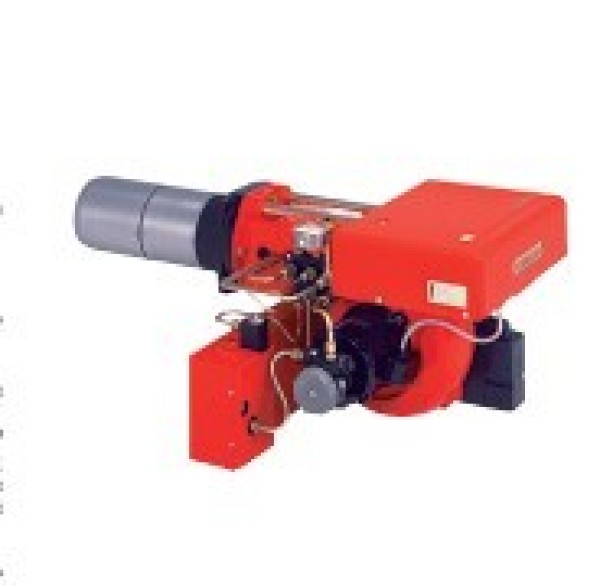

PRESS N

The PRESS N series of burners covers a firing range from 171 to 1140 kW and they have been designed for use in civil installations of average dimensions, like building areas and large apartment groups or for use in industrial applications, like small or medium plants.

Operation is two stage; a servomotor adjust automatically air damper opening, to obtain the right air delivery on both stage. The burners are fitted with a microprocessor control panel which supplies indication of operation and diagnosis of fault cause.

The combustion head, that can be set on the basis of required output, allows optimal performance ensuring good combustion and reducing fuel consumption and is available in two different length to be selected on the basis of specific application requirements.

In basic version the burners are supplied for use with heavy oil 7°E viscosity, but they can be supplied with higher viscosity oil with a specific heaters kit.

Simplified maintenance is achieved by the slide bar system, which allows easy access to all of the essential components of the combustion head.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

PRESS N

Range Documentation

Type Language
Technical-commercial sheet Download
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

TWO-STAGE

20132092
PRESS 30 N TC FS1 1/230/50 230/50
Type Language
Installer Manual Italian,German,English,French Download
20132093
PRESS 30 N TL FS1 1/230/50 230/50
Type Language
Installer Manual Italian,German,English,French Download
20132103
PRESS 45 N TC FS1 3/230-400/50 230/50
Type Language
Installer Manual Italian,German,English,French Download
20132104
PRESS 45 N TL FS1 3/230-400/50 230/50
Type Language
Installer Manual Italian,German,English,French Download
3434923
PRESS 60 N TC FS1 3/230-400/50 230/50
Type Language
Installer Manual English,French,German,Italian Download
3434924
PRESS 60 N TL FS1 3/230-400/50 230/50
Type Language
Installer Manual English,French,German,Italian Download
3435923
PRESS 100 N TC FS1 3/230-400/50 230/50
Type Language
Installer Manual English,French,German,Italian Download
3435924
PRESS 100 N TL FS1 3/230-400/50 230/50
Type Language
Installer Manual English,French,German,Italian Download
