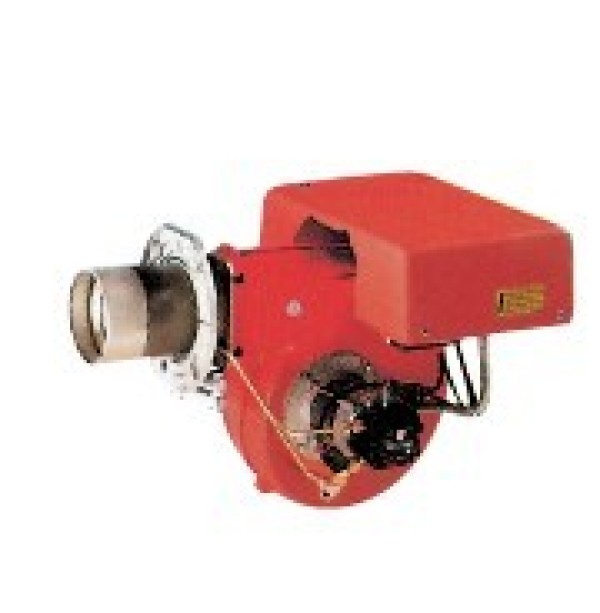

PRESS GV

The PRESS G series of burners covers a firing range from 140 to 356 kW and they have been designed for use in civil installations of small dimensions or in industrial applications, like incinerators or dyer kilns.

Operation is “One stage”; the burners are fitted with a microprocessor-based burner safety control box which supplies indication of operation and diagnosis of fault cause. The combustion head, that can be set on the basis of required output, allows optimal performance ensuring good combustion and reducing fuel consumption.

The main feature of these burners is their reliability due to a simple and strong construction, which permits operation without particular maintenance intervention.

Simplified maintenance is achieved by the slide bar system, which allows easy access to all of the essential components of the combustion head. All electrical components are easily accessible only by dismounting a protection panel, thus guaranteeing a quick and simple intervention on components.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

PRESS GV

Range Documentation

Type Language
Technical-commercial sheet Download
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

ONE-STAGE

20096861
PRESS G24 TC FS1 1/230/50 230/50
Type Language
Installer Manual English Download
3473620
PRESS GV TC FS1 1/230/50 230/50
Type Language
Installer Manual German,English,French,Dutch Download
Installer Manual Italian,English,French,German,Spanish,Portuguese,Dutch,Danish,Greek,Swedish Download
3808058
PRESS GV TC FS1 1/220/60 220/60
Type Language
Installer Manual German,English,French,Dutch Download
