A wall-hung hybrid system is a multi-energy hybrid system for heating, summer cooling and domestic hot water production.

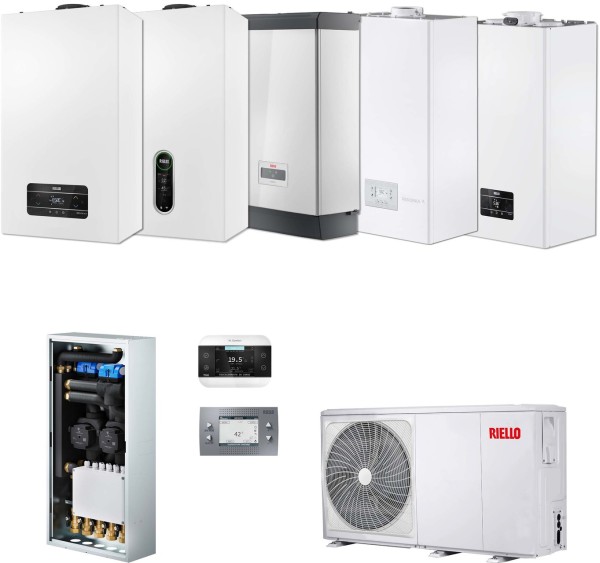

This system is manufactured by combining three main components together:
– the wall-hung boiler: depending on the installation needs, the choice of the gas generator can be made among boilers from 25 to 35kW, heating only or combined boilers, for wall-hung (indoor or outdoor in partially protected places) or built-in installation. The boilers have a modulation ratio of 1:5 or 1:8, depending on the model, and are all equipped with high-efficiency circulators. The system control panel is able to activate the most energy efficient heat source based on climatic conditions, and to manage the system with up to 2 independent hot/cold temperature zones.
– the heat pump: wall-hung split air-water type, available in versions ranging from 4 to 16 kW, with wall-hung indoor unit for heating and domestic hot water production. The outdoor unit, compact and quiet, includes a Twin Rotary DC inverter compressor, electronic expansion valve, fans with brushless motor and finned pack coil optimized for heat pump operation even with outdoor air temperature of -25°C. The indoor unit houses the main components of the hydronic system, high surface plate exchanger and high-efficiency electronic circulation pump.

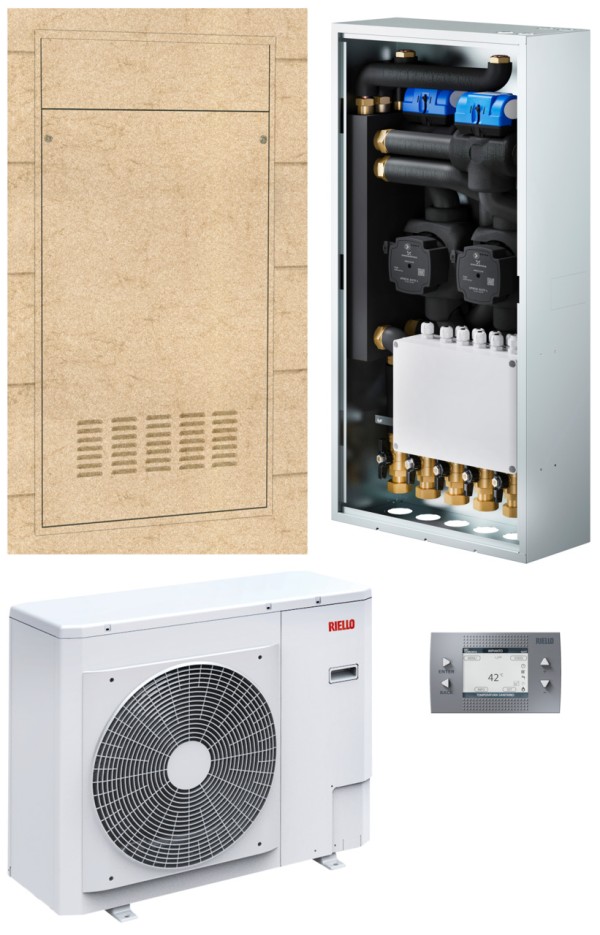

– the hydraulic distribution module: the choice can be made between the simple Hbox hydraulic node, and the more flexible
BAG³ Hybrid distribution module. Hbox allows you to make a simple hydraulic connection between the two generators, creating a one-way system in which the boiler pumps and the heat pump supply the system. For more complex systems, the BAG³ Hybrid distribution module is available: for indoor recessed or wall-hung installations, or for outdoor recessed installations, in 1-direct, 2-direct or 1-direct and 1-mixed configurations, equipped with low consumption self-modulating circulators (eeI≤0.20). The distribution module also works as hydraulic separator between the generators and the system circuits. The system is set up for connection to a single-coil domestic hot water heater served by heat pump, or to a dual-coil domestic hot water heater served by heat pump and solar thermal system, by installing the diverting valve kit.
Products
| Type | Language | |
|---|---|---|
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| BIM model | Download | |
| BIM model | Download | |
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Energy Label | English | Download |
| Homologation Certificate | English, German | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| BIM model | Download | |
| BIM model | Download | |
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Energy Label | English | Download |
| Homologation Certificate | English, German | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| BIM model | Download | |
| BIM model | Download | |
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Energy Label | English | Download |
| Homologation Certificate | English, German | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
| Type | Language | |
|---|---|---|
| BIM model | Download | |
| BIM model | Download | |
| Conformity declaration | Italian, English, French, Spanish, Portuguese, Hungarian, Polish, Slovenian, German, Greek | Download |
| Energy Label | English | Download |
| Energy Label | English | Download |
| Homologation Certificate | English, German | Download |
| Homologation Certificate | English | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English, Polish | Download |
| Installer + User Manual | Italian, English | Download |
| User Manual | Italian, English, Polish, Spanish, Portuguese, French, Dutch, Hungarian | Download |
