RES split hybrid system - floor standing solution

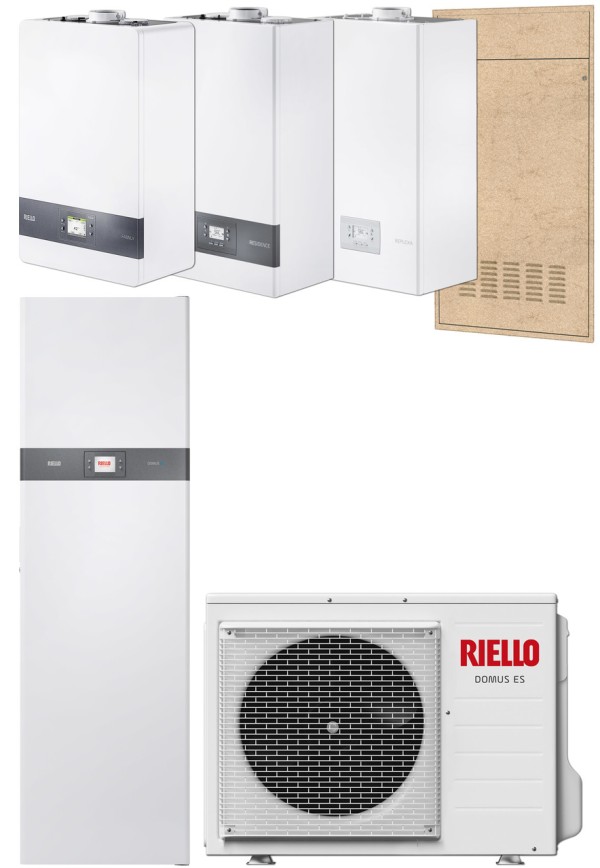

A RES split hybrid system for wall-hung solution, is a multi-energy hybrid system for heating, cooling, and the production of domestic hot water. This system consists of:





- the wall-hung mounted boiler: depending on the installation needs, the choice of the gas generator can be made by choosing between boilers from 25 to 35kW, heating only or combined, for wall-hung installation (indoors or outdoors in partially protected places) or from recessed. The boilers have a 1: 5 or 1: 8 modulation ratio, depending on the model and are all equipped with high efficiency circulators. The system control panel is able to activate the most energy-efficient heat source based on the climatic conditions, and to manage the system with up to 2 independent hot / cold temperature zones.


- the heat pump: split basement air-water type of the Domus ES series, available in versions ranging from 5 up to 15 kW, with basement indoor unit for heating, cooling and for the production of domestic hot water . The compact and silent outdoor unit includes a Twin Rotary DC inverter compressor, electronic expansion valve, fans with brushless motor and finned coil optimized for heat pump operation even with external air temperatures of -20 ° C. The main components of the hydronic system, on the other hand, are housed in the indoor unit, including a 200l inertial tank with large surface stainless steel coil for instantaneous production of domestic hot water.


- The hydraulic distribution module: the choice can be made between the simple Hbox hydraulic node, and the more flexible BAG³ Hybrid distribution module. Hbox allows you to make a simple hydraulic connection between the two generators, creating a one-way direct system in which the boiler and heat pump pumps are responsible for powering the system.


For more complex systems, the BAG³ Hybrid distribution module is available: for recessed or wall-mounted indoor installations, or recessed outdoor installations, in the 1 direct, 2 direct or 1 direct and 1 mixed configurations, equipped with self-modulating circulators low consumption (EEI≤0.20). The distribution module also acts as a hydraulic separator between the generators and the system circuits. The system is designed for connection to a single coil domestic hot water tank served by a heat pump, or to a double coil domestic hot water tank served by a heat pump and solar thermal, by installing the diverter valve kit.


- Simple and intuitive control panel with large backlit display, characterized by advanced management logics of the hybrid system, in order to guarantee maximum efficiency by favoring the most efficient heat source according to the external temperature. The panel allows the complete parameterization of the system, as well as the display of the operating status. Supplied with the heat pump, complete with bracket to be positioned directly inside the rooms.

  • Heating, cooling and domestic hot water production
  • Intelligent management of two energy sources: condensing boiler and heat pump
  • Possibility to control up to 3 indoor zones
RES split hybrid system - floor standing solution

Products

WALL-HUNG BOILERS

HEATING ONLY VERSION

20187643
FAMILY 25 IS
Type Language
DXF/DWG Drawing Download
Installer Manual Download
Installer + User Manual English, Hungarian, Romanian, German Download
Installer + User Manual English, Hungarian, Romanian, German Download
User Manual Download
Energy Label English Download
20187646
FAMILY 35 IS
Type Language
DXF/DWG Drawing Download
Installer Manual Download
Installer + User Manual English, Hungarian, Romanian, German Download
Installer + User Manual English, Hungarian, Romanian, German Download
User Manual Download
Energy Label English Download
20139526
RESIDENCE 20 IS
Type Language
Homologation Certificate Download
Installer Manual Download
Installer Manual Download
Installer + User Manual English, Romanian, Hungarian, Greek, Bulgarian, German Download
Installer + User Manual English, Romanian, Hungarian, Greek, Bulgarian, German Download
Installer + User Manual English, Romanian, Hungarian, Portuguese, Greek, Bulgarian Download
Installer + User Manual English, Romanian Download
BIM model English Download
Energy Label English Download
20139528
RESIDENCE 35 IS
Type Language
Homologation Certificate Download
Installer Manual Download
Installer + User Manual English, Romanian, Hungarian, Greek, Bulgarian, German Download
Installer + User Manual English, Romanian, Hungarian, Greek, Bulgarian, German Download
Installer + User Manual English, Romanian, Hungarian, Portuguese, Greek, Bulgarian Download
Installer + User Manual English, Romanian Download
Energy Label English Download
Floor standing split air-water heat pumps

single-phase version

20155360
DOMUS ES 5M
Type Language
BIM model English Download
BIM model English Download
20155362
DOMUS ES 7M
Type Language
BIM model English Download
BIM model English Download
20155363
DOMUS ES 9M
Type Language
BIM model English Download
BIM model English Download
20155364
DOMUS ES 12M
Type Language
BIM model English Download
BIM model English Download
20155366
DOMUS ES 15M
Type Language
BIM model English Download
BIM model English Download

three-phase version

20155365
DOMUS ES 12T
Type Language
BIM model English Download
BIM model English Download
20155368
DOMUS ES 15T
Type Language
BIM model English Download
BIM model English Download

Products to match your system

COMBINABLE HYBRID DISTRIBUTION MODULES

DISTRIBUTION MODULES WITH SEPARATOR

20130806
BAG3 HYBRID 2D
20130807
BAG3 HYBRID 1D+1M
20130808
IN- WALL INSTALLATION BOX

COMBINABLE STORAGE TANKS

20090056
7000 ACI 60 PLUS
20082450
7000 ACI 120 PLUS

ACCESSORIES FOR WALL-HUNG BOILERS

BUILT-IN UNIT

20082310
RECESSED UNIT M

RiCLOUD

20117399
RiCLOUD
20117359
RF-wireless boiler receiver
