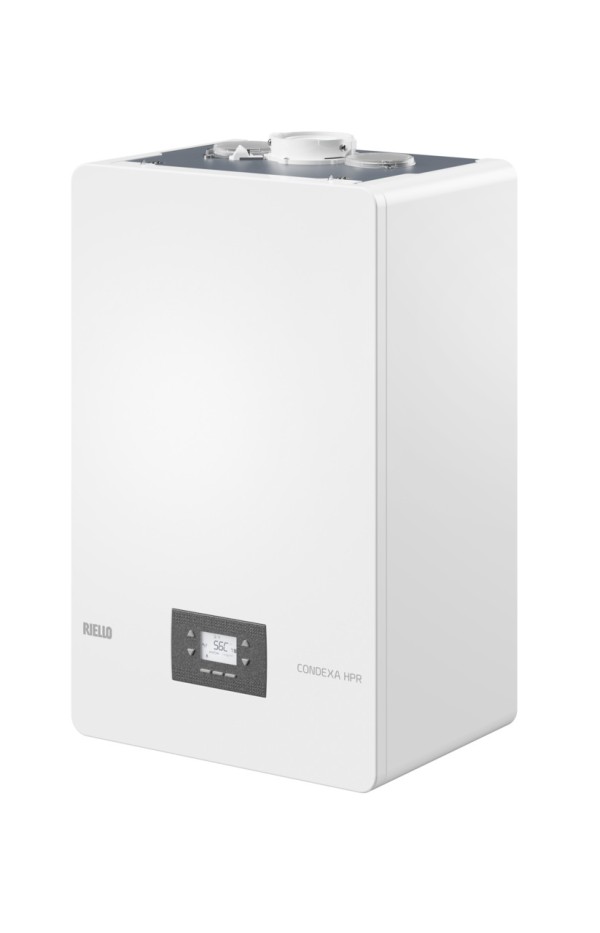

Condexa HPR is the wall-hung modular condensing system which make the compactness the primary point of strenght.
The primary stainless steel heat exchanger with horizontal envelope,with a combustion chamber with frontal access, ensure high performances in terms of efficiency and reliability in times.
The range is composed by 4 models in only heating configuration, with thermal modules from 34,9 up to 70 kW.
Condexa HPR can be installed as stand alone either indoor or outdoor in partially covered environment, while the cascade can be installed indoor up to 4 modules, both in FRONT and BACK-to-BACK configurations.
The management of the cascade is ensured by the new electronic system manager, ease and user friendly which can also manage, parametrize and visualize up to 4 modules in cascade as well as manage up to 6 indipendent zones.
– Designed to operate with natural gas and hydrogen mixtures, up to a maximum of 20% of hydrogen.
– 8:1 turndown ratio in stand alone installation, up to 32:1 in cascade.
– Modulating circulator with high hydraulic head and low consumption.
– Maximum operating pressure: 5 bar.
– Ease of installation.
– Wide range of accessories to complete both the stand alone and the cascade installation, both in FRONT and BACK-to-BACK configuration.
