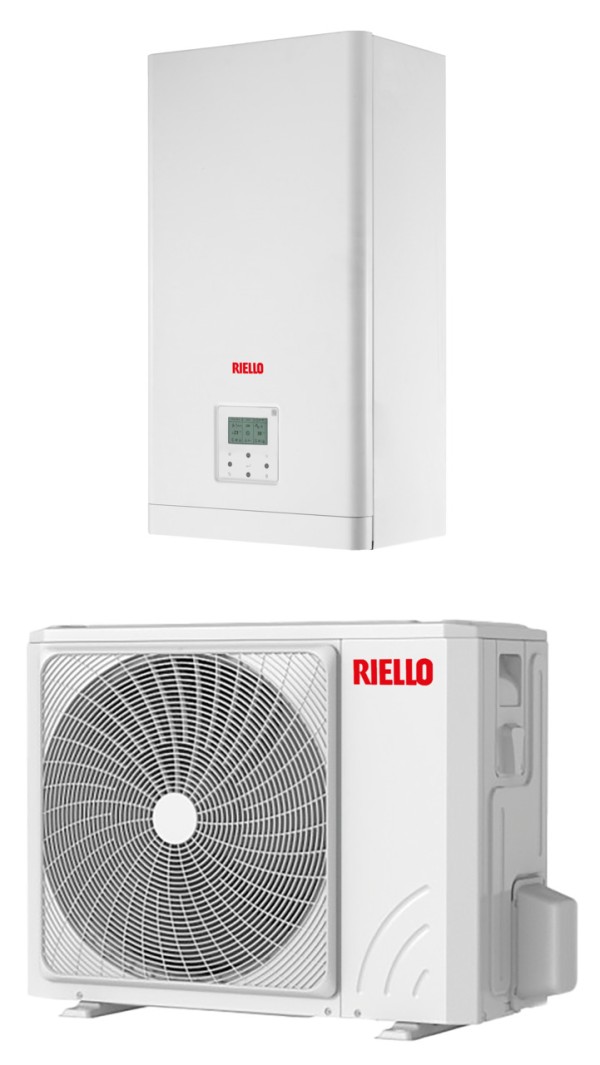

FAMILY SPRINT is a split system heat pump, with wall hung indoor unit, for heating, cooling and domestic hot water production. The system consists of an outdoor unit, with R32 gas, connected through refrigerant pipes to an indoor wall hung unit.
The outdoor unit is compact and quite, includes a Twin Rotary DC inverter compressor and works even with an outdoor air temperature of -25°C.

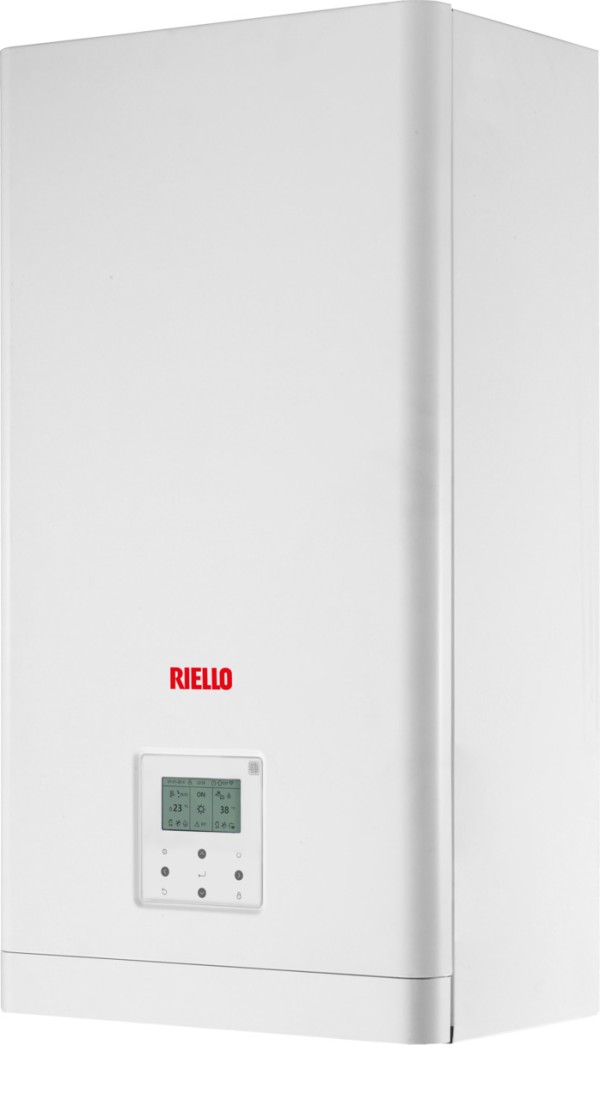

The indoor unit, with a depth of only 270 mm, is available in two versions: with and without back up heater on board. The back up heater on mono phase internal units has a power of 3 kW, while on tri phase internal units of 9 kW.
The control panel, provided on the internal unit, has a wide backlit display, with intuitive icons and a multilingual menu.
On FAMILY SPRINT you can activate Silent Mode function, in two different levels, who can reduce sound pressure down to 39 db(A) (sound pressure of 4 kW size, on Silent Mode level 2).
* The range of energy efficiency class of this products category is between D and A+++
