RPS 25/4

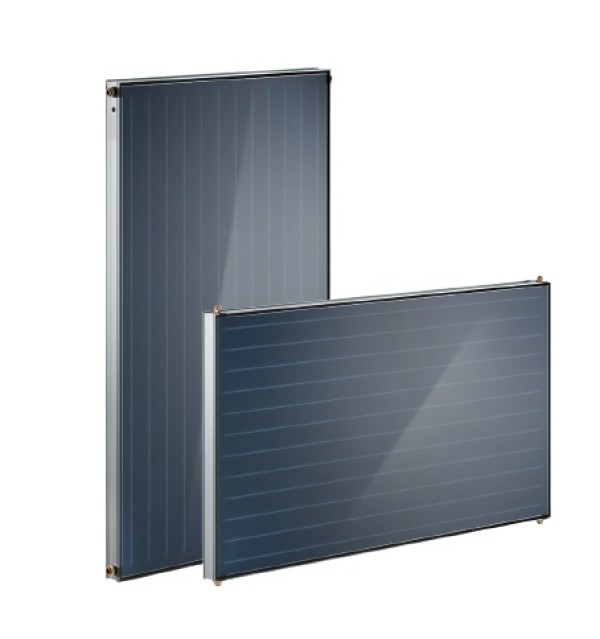

The solar collector RPS 25/4 can be used both for vertical and horizontal installations.

It is equipped with an aluminum absorber plate with high selective finishing in TiNOx Energy Al that allows 95% energy absorption on the surface and reduce its emission to 4%. On the plate are welded harp-shaped pipes through which the heat-transfer fluid runs. The high transparency sun glass guarantees high transmissivity.

Along with the rock wool insulation, that is 40 mm thickness, guarantees high efficiency even in case of bad weather conditions.

The solar collector is provided with 4 x 1" floating fittings that ease the connection of collectors and the maintenance operations. It is possible to connect in series up to 6 panels in case of horizontal installations and up to 10 panels in case of vertical installations.

A film is provided as standard to protect the collector from overheating before the system starts working.

A wide range of accessories and fixing systems is available to ensure maximum installation flexibility.

The solar collector complies with EN 12975, ISO 9806 and is Solar Keymark certified.

5 year warranty.

  • Flat plate solar collectors both for vertical and horizontal installation (2,3 m2)
  • Aluminium frame
  • Aluminium absorber with high selective coating (TiNOx Energy Al)
  • 4 fittings
  • Protection film as standard
RPS 25/4

Range documentation

Type Description Language
Technical-commercial sheet Download
Technical-commercial sheet Download
Technical-commercial sheet Download
Technical-commercial sheet Download
Conformity declaration Download
Installer Manual Download

Products

TECHNICAL DATA

20127137
RPS 25/4
Type Language
Homologation Certificate English Download
Installer + User Manual English Download
20140510
2 COLLECTORS RPS 25/4
Type Language
Installer + User Manual English Download
20140511
5 COLLECTORS RPS 25/4
Type Language
Installer + User Manual English Download
