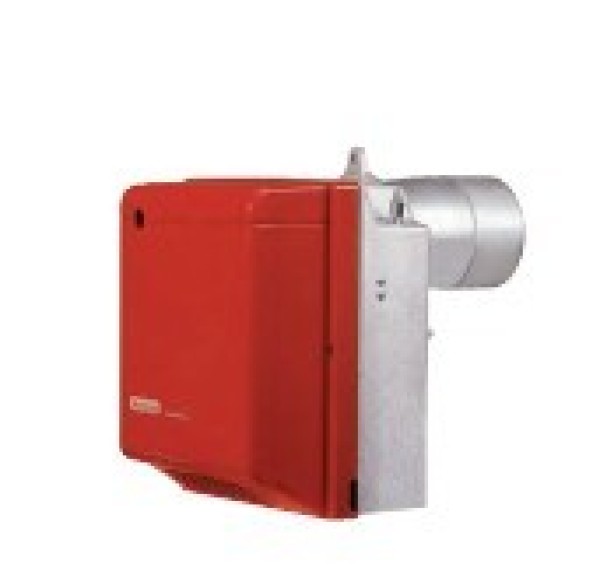

The Riello Gulliver RG5DF is a new model of one stage light oil burner, developed to respond to any request for light industrial processes like bakery ovens, spray painting ovens, small steam or thermal boilers and all applications which require a reliable, user-friendly industrial product with enhanced performance and specific functions.

This model uses the same components designed by Riello for the Gulliver series and has the same ventilation system and overall dimensions as the previous two stage light oil model.

This new burner can operates on 50 or 60 Hz and a Voltage 220 - 230 Volt (dual frequency). It is conform to the EN 267 Standard (Forced draught oil burners) and to European Directives for EMC, Low Voltage and Machinery.

For depressurised working field see EN 746-2 Standard.

The Gulliver RG5DF burner is fired before leaving the factory.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.


Range documentation

Type Description Language
Technical-commercial sheet Download
Product Brochure/Depliant English Download
Product Brochure/Depliant English Download




RG5DF 1/220-230/50-60
Type Language
Installer Manual Italian, English, French, German, Dutch, Spanish, Portuguese, Danish, Swedish, Norwegian, Russian, Polish, Bulgarian, Turkish, Greek, Arabic Download
Installer Manual English, Spanish Download
