RS

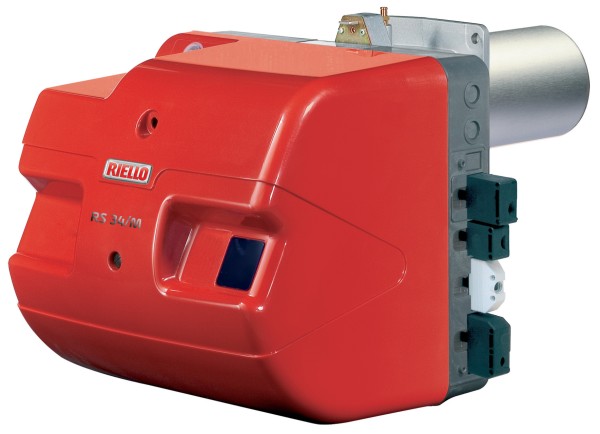

The RS burners series covers a firing range from 44 to 2290 kW, and it has been designed for use in low or medium temperature hot water boilers, hot air or steam boilers, diathermic oil boilers.

Operation is “two stage progressive”; the burners are fitted with a microprocessor-based burner safety control box which supplies indication of operation and diagnosis of fault cause.

The elevated performance of the fans and combustion head, guarantee flexibility of use and excellent working at all firing rates.

The exclusive design ensures reduced dimensions, simple use and maintenance. Optimisation of sound emissions is guaranteed by the special design of the air suction circuit and by incorporated sound proofing material. A wide range of accessories guarantees elevated working flexibility.

Guidelines for installation of burners in conformity to EU Regulation:

A RIELLO burner (Heat Generator), where it is matched with a water-based boiler (Heater Housing) with a nominal output ≤ 400 kW, providing heat for heating purposes and heat to deliver sanitary hot water, can be installed:

- With boilers (heater housings) already in service in the field, for replacement of identical products, in conformity to Article 1, paragraph 2, point (G) of the EU Regulation No. 813/2013;

- With boilers (heater housings) on a new installation, if they have emissions complying with the requirement of Annex II, paragraph 4 of the EU regulation No. 813/2013.

RS

Range documentation

Type Description Language
Product Brochure/Depliant English Download

Products

TECHNICAL SPECIFICATIONS

PROGRESSIVE TWO-STAGE

3789010
RS 34 MZ TC FS1 1/230/50-60 230/50-60
Type Language
Installer Manual Download
Conformity declaration Italian, English Download
Conformity declaration Italian, English Download
3789011
RS 34 MZ TL FS1 1/230/50-60 230/50-60
Type Language
Installer Manual Download
Conformity declaration Italian, English Download
20008266
RSP 34 TC FS1 1/230/50-60 230/50-60
Type Language
Installer Manual Spanish, Portuguese, English Download
Installer Manual Italian, English, French, German, Spanish, Portuguese, Dutch, Danish, Greek, Swedish Download
Installer Manual Italian, French, English, Dutch, German, Danish, Spanish, Swedish, Portuguese, Norwegian, Greek, Turkish Download
3789110
RS 44 MZ TC FS1 1/230/50-60 230/50-60
Type Language
Installer Manual Download
Conformity declaration Italian, English Download
3789111
RS 44 MZ TL FS1 1/230/50-60 230/50-60
Type Language
Installer Manual Download
Conformity declaration Italian, English Download
3789140
RS 44 MZ TC FS1 3/230-400/50-60 230/50-60
Type Language
Installer Manual Download
3789141
RS 44 MZ TL FS1 3/230-400/50-60 230/50-60
Type Language
Installer Manual Download
