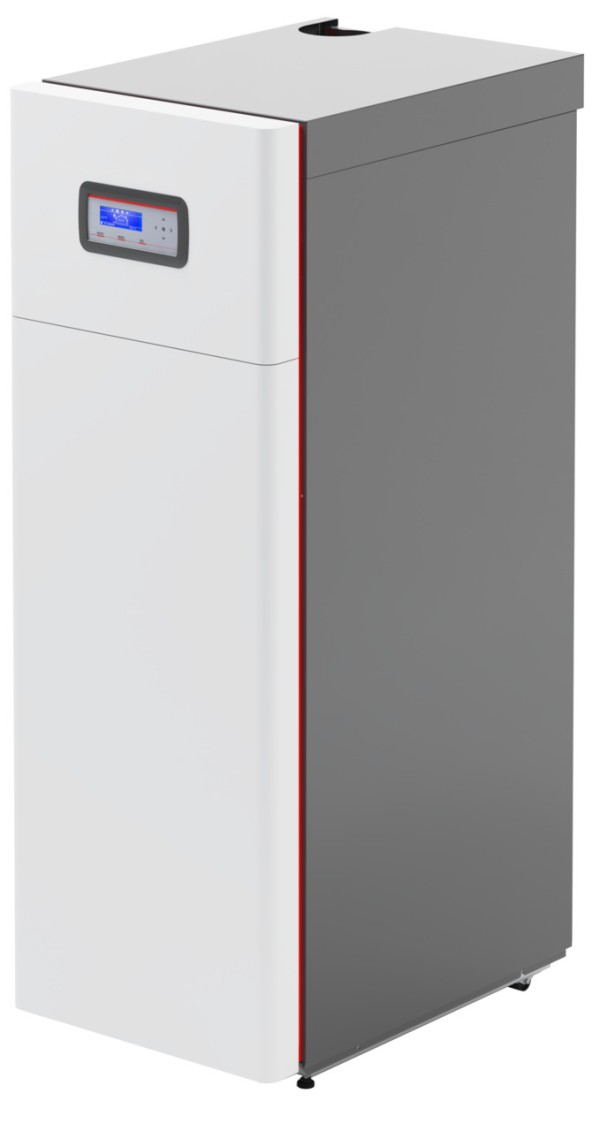

TAU UNIT

The high water content body has a vertical smoke pipe, and has two return lines to provide the best possible operation in condensing mode. The water stratifies at a high temperature at the top of the body, while the cold water accumulates at the bottom where the condensation occurs.

The boiler board, which has an easy-to-use interface, allows you to optimise the combustion, manage a remote storage cylinder for the production of domestic hot water and the supply temperature in climatic mode. The basic electronics includes include climatic regulation, management of the cascade of the modules, with integrated master/slave functions, the automatic switching between summer/winter and the possibility of managing a direct zone and a DHW storage cylinder.

The electronics also provides the possibility of the remote management using the 0-10V input or with the Modbus protocol.

With specific accessories it is also possible to manage the distribution of the secondary circuit, up to 16 mixed zones.

The optimal combustion management and the high modulation ratio of 1:10 (for models 35-115), provide a high performance and low polluting emissions (NOx in Class 6 according to UNI EN 15502). All models include the external probe.

The range can operate with both methane gas and LPG (with the relative accessory).

– High quality and precision finishings

– 1:10 modulation ratio (up to model 115)

– Easy to maintain because all the internal components are fully accessible

– Smaller overall dimensions

– Maximum operating pressure: 5 bar.

  • In conformity with Regulation (EU) 2016/426
  • Gas condensing boilers with a high water content titanium stabilised stainless steel body (AISI 316 "Ti" + AISI 444) and a low pollutant emission (Class 6 according to UNI EN 15502) modulating premix burner
TAU UNIT

Range documentation

Type Description Language
Product Brochure/Depliant Download
Technical-commercial sheet English Download
Product Brochure/Depliant English Download

Products

TECHNICAL DATA

20145133
TAU UNIT 35
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer Manual English Download
User Manual English Download
20144105
TAU UNIT 50
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer Manual English Download
20144106
TAU UNIT 70
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer Manual English Download
20144107
TAU UNIT 100
Type Language
Homologation Certificate English Download
Installer Manual English Download
20144108
TAU UNIT 115
Type Language
Homologation Certificate English Download
Installer Manual English Download
20145135
TAU UNIT 140
Type Language
Homologation Certificate English Download
Installer Manual English Download
Installer Manual English Download
20145136
TAU UNIT 190
Type Language
Homologation Certificate English Download
Installer Manual English Download
