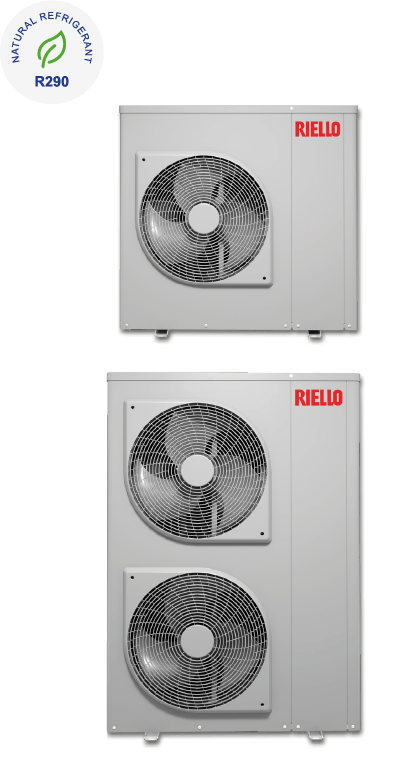

NXHP

Air to water heat pump R290 monobloc

RIELLO PRESENTS NXHP, THE NEW RANGE OF MONOBLOC AIR-TO-WATER HEAT PUMPS WITH REFRIGERANT R290, A COMBINATION OF INNOVATION AND ENVIRONMENTAL SUSTAINABILITY.

Designed to provide heating, cooling and domestic hot water, the new NXHP heat pump uses R290 gas, the natural refrigerant that boasts an environmental impact near zero (GWP 3), while offering high performance and energy efficiency.

The new range stands out in the reference segment by its compact dimensions and low weight (starting from 78 kg), which facilitate handling during installation. With a width of just 946 mm, NXHP is also installable on a balcony, and represents a winning solution not only for new construction but also for renovation.

The flow temperature of up to 75°C is another distinctive feature of NXHP, which offers high comfort in all seasons of the year, in domestic hot water as well as in heating and cooling.

The extremely quiet operation is a further strength that completes the high-end profile of the new heat pump, which will be appreciated by even the most demanding users.

The new NXHP heat pump can be integrated into factory-made hybrid systems with condensing generators.

FEATURES AND BENEFITS OF NXHP

FOR THE END USER

FOR THE INSTALLER

SUSTAINABILITY AT THE HIGHEST LEVEL

Riello, increasingly focused on designing environmentally friendly comfort solutions, with NXHP offers the highest contribution of its heat pumps range in terms of environmental and climatic sustainability.

In fact, the new range uses the natural refrigerant R290 (Propane), currently the most sustainable refrigerant on the market in its segment, offering high energy efficiency over the entire operating range.

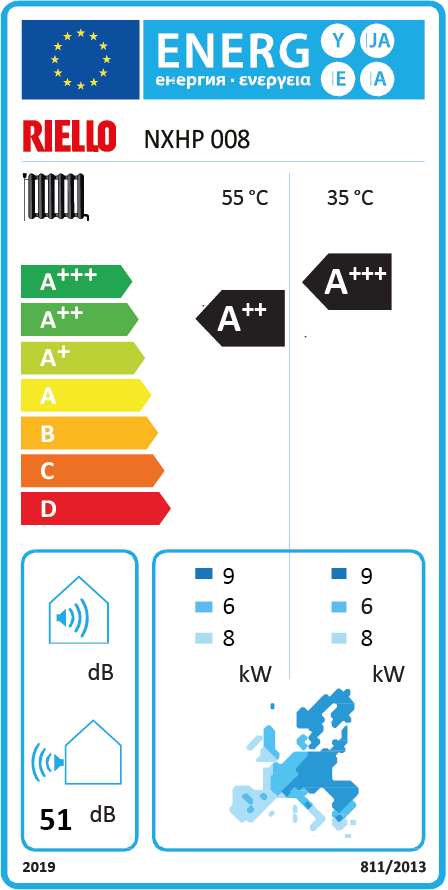

EFFICIENCY AND ENERGY SAVING

The new NXHP range is characterised by high energy efficiency, which translates into energy savings for the benefit of the environment and the user:

• All sizes in the range achieve the Energy Class A++^* (35°C) and A++^* (55°C);
• Thanks to the natural refrigerant R290, NXHP is characterised by high SCOP (up to 4,82) and SEER (up to 5,34).

* The range of energy efficiency class of this products category is between D and A+++

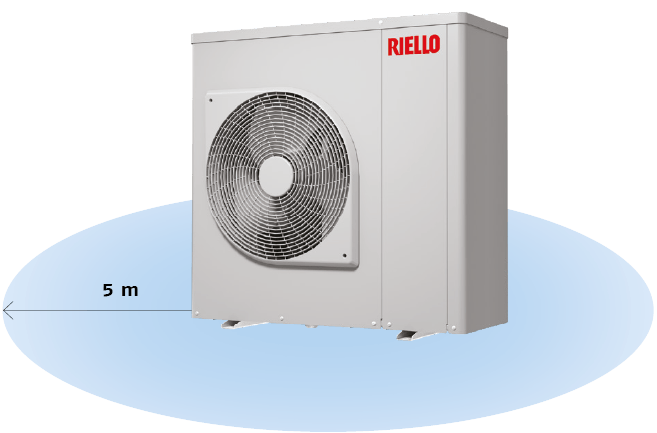

ALMOST IMPERCEPTIBLE, LIKE THE RUSTLE OF LEAVES

One of the distinguishing features of NXHP is its quiet operation, which places the new heat pump at the top of its reference category, boasting a sound pressure level as low as 24db(A)*.

Sound emissions perceived by the human ear at a distance of 5m are in fact almost imperceptible, comparable to the rustle of leaves.

* Data measured at 5m distance from the product in operation (outdoor air +7°C, water +47/55°C), in accordance with EN 12102-1.

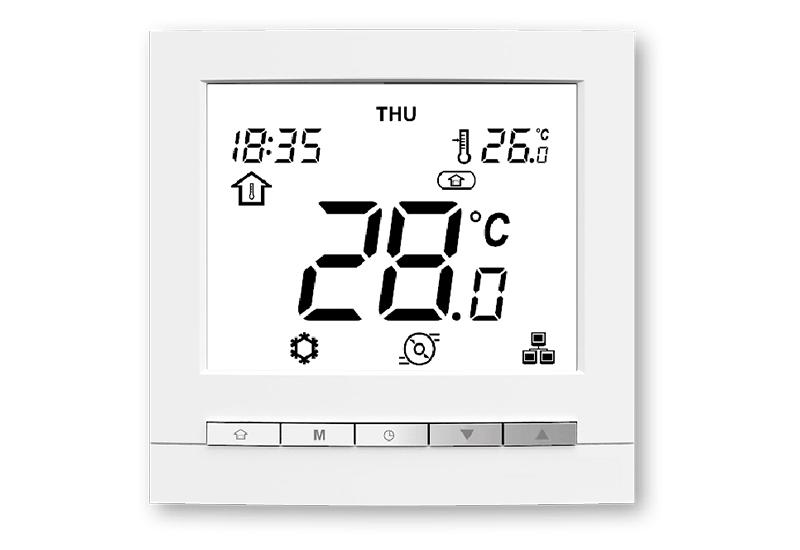

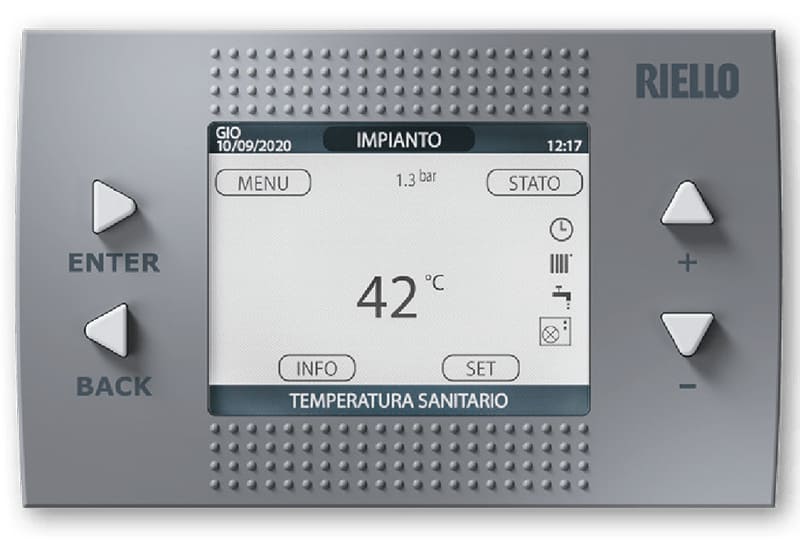

MANAGING COMFORT WITH SIMPLICITY

IDEAL FOR RETROFITTING AND NEW CONSTRUCTION

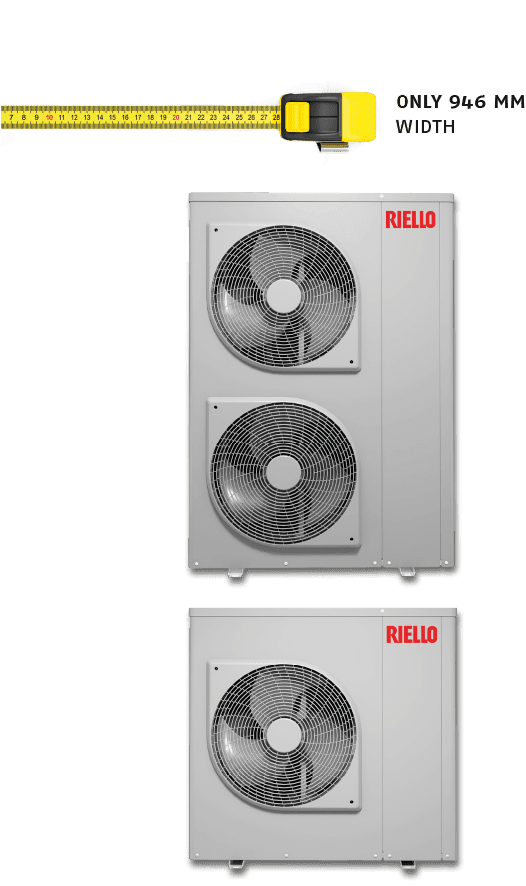

RECORD BREAKING COMPACTNESS

NXHP is characterised by its compactness, which combined with its low weight, places the new heat pump from Riello at the top of its class. In particular, the width of less than 1 m facilitates installation of NXHP even in small spaces, for example on a balcony!

Another special feature of NXHP, which makes it suitable for both retrofitting and new construction, is the flow temperature, which can reach up to 75°C..

The new range therefore offers high performance in combination with the different terminals for low, medium and high temperatures: from underfloor heating to fan coils and cassettes up to radiators (also pre-existing) and mixed systems.

In addition, the high flow temperature allows NXHP to deliver and store a greater quantity of hot water and quickly, avoiding the need for electrical resistance to sterilise the water, protecting from legionella.
