AARIA MULTI PLUS I

The AARIA MULTI PLUS I range has been designed to serve several rooms using just one outdoor unit.

The main feature is the flexibility to choose indoor units among wall-mounted, cassette and duct-connected models.

AARIA MULTI PLUS I is available in six versions, from 5 kW up to 9 kW of cooling capacity, and guarantees state-of-the-art energy performance.

The units AARIA MULTI PLUS with low environmental impact R32 refrigerant achieve A++/A+* energy efficiency classes thanks to the Inverter technology.

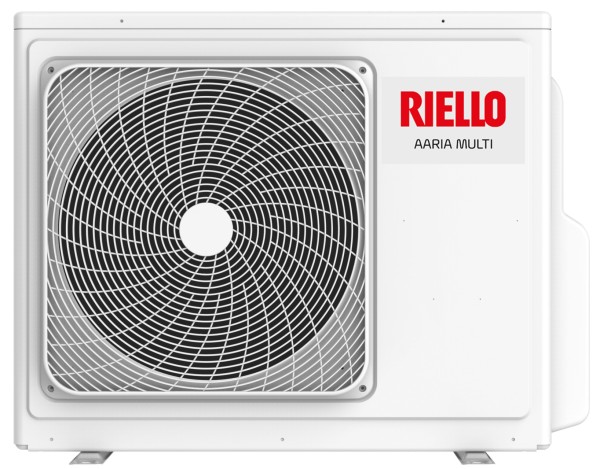

The external unit is made of pre-painted weather-resistant metal and is equipped with attachment covers and plastic front grille.

The compressor is of the high-efficiency twin rotary type and minimises vibration.


– Condensing unit with up to 5 connections for indoor units.

– Wide range of indoor units: wall-mounted, cassette and duct-connected.

– DC Inverter technology

– High SCOP and SEE R

– Up to 80 m ducting length.

– Outdoor unit operating limit: down to -25°C in heating and +43°C in cooling.

– Small size.

– High energy class, for low consumption.

  • Multisplit DC inverter air conditioner
  • Multi range of up to 5 indoor units
  • R32 heat pump with low environmental impact



* The range of energy efficiency class of this products category is between D and A+++

AARIA MULTI PLUS I

Products

TECHNICAL DATA

20206346
AARIA MULTI 250 PI
  • Documents
  • Components (BOM)
Type Description Language
BIM model Download
Conformity declaration Declaration of conformity AMW AARIA MONO MULTI START Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI Italian Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI - EN English Download
Code
Name
20206307
AMW 25 ST N
Type Description Language
Conformity declaration Declaration of conformity AMW AARIA MONO MULTI START Download
Installer Manual Libretto installatore unità interna - IT Download
Installer Manual Libretto installatore unità interna - EN Download
User Manual Libretto utente - ITA+EN Download
20206309
AMW 35 ST N
20200997
AARIA MULTI 355 PI
  • Documents
Type Description Language
BIM model Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI Italian Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI - EN English Download
20200998
AARIA MULTI 370 PI
  • Documents
Type Description Language
BIM model Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI Italian Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI - EN English Download
20200999
AARIA MULTI 475 PI
  • Documents
Type Description Language
BIM model Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI Italian Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI - EN English Download
20201000
AARIA MULTI 485 PI
  • Documents
Type Description Language
BIM model Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI Italian Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI - EN English Download
20201001
AARIA MULTI 590 PI
  • Documents
Type Description Language
BIM model Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI Italian Download
Installer Manual LIBRETTO INSTALLATORE AARIA MULTI PI - EN English Download

Products to match your system

TECHNICAL DATA OF WALL-MOUNT INDOOR UNITS - AMW PI

20206313
AMW 20 PI
20206314
AMW 25 PI
20206315
AMW 35 PI
20206317
AMW 50 PI

TECHNICAL DATA OF CEILING/FLOOR INDOOR UNITS

20151552
AMS 35 P
20151553
AMS 50 P
20151554
AMS 70 P

TECHNICAL DATA OF FLOOR INDOOR UNITS

20151549
AMC 25 P
20151550
AMC 35 P
20151551
AMC 42 P

TECHNICAL DATA OF INDOOR CASSETTE UNITS

20151428
AMK 25 P
20151429
AMK 35 P
20151430
AMK 50 P
20151432
AMK 70 P
20151431
Pannello 4 vie AMK 25-35-50 P
20151433
4 WAY PANEL AMK 70 P
20154918

AMK 25 P KIT

20154921

AMK 35 P KIT

20154920

AMK 50 P KIT

20155179

AMK 70 P KIT

TECHNICAL DATA OF DUCTED INDOOR UNITS

20151425
AMD 50 PA
20151426
AMD 70 PA
20151427
AMD 70 PB
