COMMERCIAL BOILERS

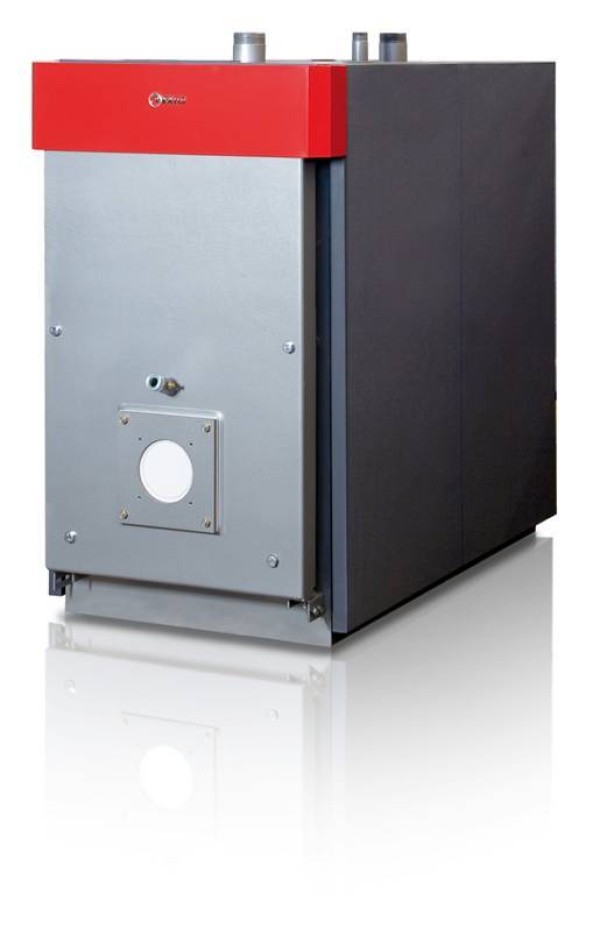

RTG
Monobloc steel boilers with possibility of using gas or oil burners. They are equipped with pressurized furnace with three actual fume paths, passing flame and horizontal development mounted on steel base. The exterior of the body is equipped with hydraulic connections, rings for lifting rods, handrails and manhole (models from 5000 to 9000).
The particular geometry of the heat exchanger allows reducing the presence of fumes in the high temperature zones, thus reducing the formation of NOx. Front access is ensured by two doors insulated with refractory materials and a containment braid. The fume box is equipped with condensate drain and doors for easy cleaning and maintenance.
The body is thermally insulated with high density stone wool and protected by an aluminium sheet.
These boilers are available in 14 models with useful output from 1,165 to 10,560 kW.
The optional control panel must be ordered separately.
– High point yields and intermediate seasons
– Reduced polluting emissions
– Robust construction
– Can be combined with Riello monobloc burners
– Easy to transport (lifting rings)
– Easy maintenance: front access to the combustion chamber, fume tubes, fume chamber and inside the body
– Easy to assemble: easy coupling and standardised connections
– Installation flexibility: a number of installation solutions is possible by combining Riello burners.
- Heating only
- Steel heating body
- Chimney with triple fume path
