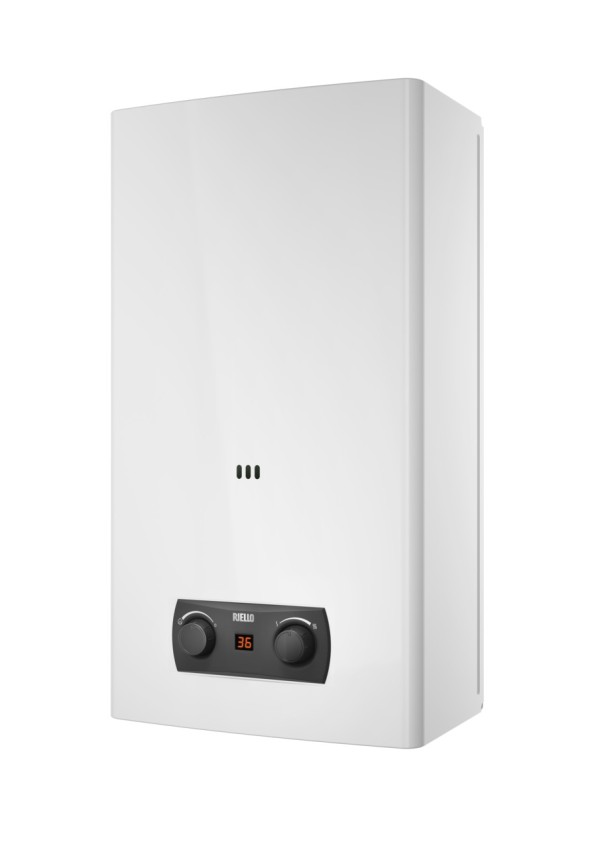

Acquafun2 LN P

ACQUAFUN2 LN P is the instantaneous open chamber gas water heater with low NOx emissions available in 11 and 14 litres models in both NG and LPG versions. Compact dimensions together with automatic battery-powered ignition make the product easy and quick to install.

- User interface with mechanical adjustment via knobs and backlit display for temperature visualization.

- Proportional flame modulation that can adapt gas consumption to domestic hot water withdrawal.

- Automatic battery-powered ignition with water control; 2 x 1.5 Volt - size D batteries supplied.

- Pressure regulator as standard.

- Increased load profile (XL) on 14-liter models.

- Sustainable sanitary comfort (NOx < 56mg/kWh) thanks to water cooling burner.

- Quick achievement of desired DHW temperature and stability when the flow rate changes.

- Safety devices: flame sensor, safety valve, limit and flue gas thermostats.

- Simple design, compact size and silent operation for easy integration into residential environments.

  • Instantaneous conventional flue, natural gas and LPG
  • Automatic battery-powered ignition
  • Proportional modulation
  • Mechanical interface adjustment
  • Reduced NOx emissions
Acquafun2 LN P

Range documentation

Type Description Language
Product Brochure/Depliant Italian Download
Product Brochure/Depliant English Download
Product Brochure/Depliant Italian Download
Product Brochure/Depliant Italian Download

Products

TECHNICAL DATA

VERSION WITH OPEN CHAMBER WITH CONVENTIONAL FLUE - AUTOMATIC BATTERY IGNITION

20213221
ACQUAFUN² 11 LN P
  • Documents
Type Language
Energy Label English Download
Installer + User Manual Italian, English Download
20213223
ACQUAFUN² 11 LN P
  • Documents
Type Language
Energy Label English Download
Installer + User Manual Italian, English Download

VERSION WITH ROOM-SEALED WITH NATURAL DRAFT - AUTOMATIC BAT TERY IGNITION

20149833
ACQUAFUN² 14 LN NG
  • Documents
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer + User Manual Italian Download
Installer + User Manual Italian, English, Polish Download
20149834
ACQUAFUN² 14 LN LPG
  • Documents
Type Language
Energy Label English Download
Homologation Certificate English Download
Installer + User Manual Italian Download
Installer + User Manual Italian, English, Polish Download
