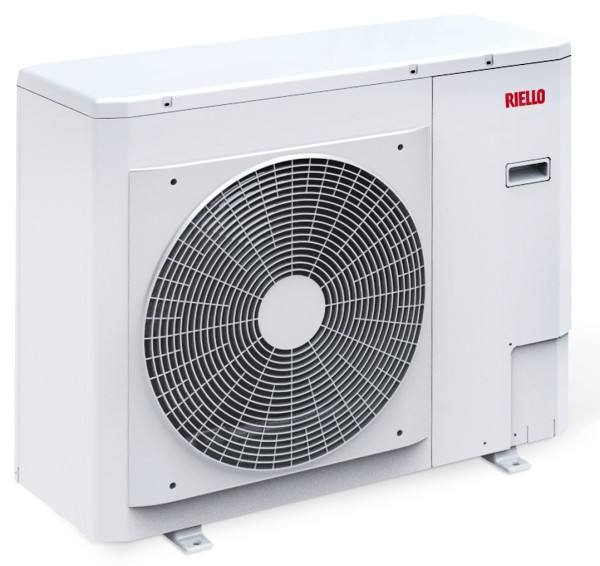

NEXPOLAR 004÷015

NexPolar is the new Riello proposal for heating and cooling, with possible production of high energy efficient domestic hot water for domestic use. The unit is equipped with a PAM and PWM modulated DC-Inverter control, which allows the Twin-Rotary type compressor to be continuously modulated from 30% up to 120%, thereby guaranteeing high energy efficiency at all times. The operating range of the unit in winter reaches outdoor temperatures of -20 °C, with hot water up to +60 °C; in summer operation the maximum outdoor temperature is +47 °C with a maximum chilled water temperature of +18 °C.

NexPolar is therefore the ideal proposal for any type of residential and commercial application for heating and cooling with underfloor installations and/or fan coils.

The unit is monobloc, so all components are housed inside to facilitate and speed up installation operations.

NexPolar is supplied with climate control as standard. NexPolar is available in nine models, from 4.1 to 15 kW.

– DC-Inverter technology with Twin-Rotary compressor

– Low inrush current thanks to the Inverter technology

– High COP and EER

– They can be connected to low-temperature radiators, underfloor heating elements and fan coil type units

– Remote control available as accessory to be ordered separately

– Water heating temperature up to +60°C

– Easy and quick installation; only connection of the hydraulic pipes is required

– Small size

High efficiency inverter heat pump
NEXPOLAR 004÷015

Products

TECHNICAL DATA

20160838
NEXPOLAR 012 TE
  • Documents
Type Language
Energy Label Download
Installer Manual Download
Installer Manual Download
Installer Manual Download
Installer Manual Download
Installer Manual Download
User Manual Download
User Manual Italian, English Download
User Manual Download
User Manual Download
