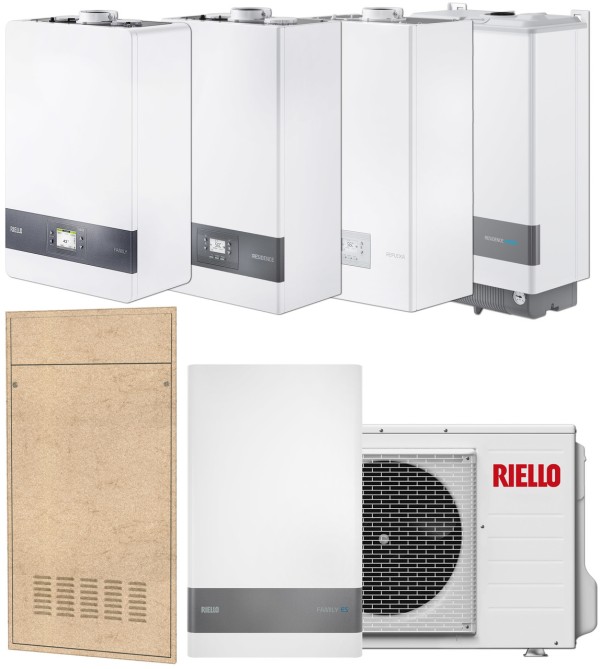

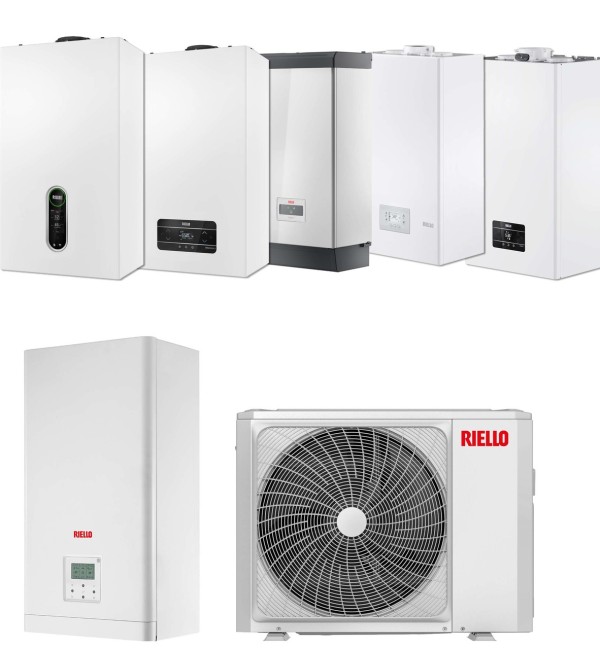

RES split hybrid system - wall-hung solution

A RES split hybrid system for wall-hung solution, is a multi-energy hybrid system for heating, cooling, and the production of domestic hot water. This system consists of:





- the wall-hung mounted boiler: depending on the installation needs, the choice of the gas generator can be made by choosing between boilers from 25 to 35kW, heating only or combined, for wall-hung installation (indoors or outdoors in partially protected places) or from recessed. The boilers have a 1: 5 or 1: 8 modulation ratio, depending on the model and are all equipped with high efficiency circulators. The system control panel is able to activate the most energy-efficient heat source based on the climatic conditions, and to manage the system with up to 2 independent hot / cold temperature zones.


- the heat pump: wall-mounted split air-water type of the FAMILY ES series, available in versions ranging from 5 up to 15 kW, with a wall-mounted indoor unit for heating and domestic hot water production. The compact and silent outdoor unit includes a Twin Rotary DC inverter compressor, electronic expansion valve, fans with brushless motor and finned coil optimized for heat pump operation even with external air temperatures of -20 ° C. The main components of the hydronic system, high-surface plate heat exchanger, high-efficiency electronic circulator are located in the indoor unit. The outdoor unit is also characterized by its extreme compactness, with all the hydraulic and refrigeration connections in the lower part of the unit.


- The hydraulic distribution module: the choice can be made between the simple Hbox hydraulic node, and the more flexible BAG³ Hybrid distribution module. Hbox allows you to make a simple hydraulic connection between the two generators, creating a one-way direct system in which the boiler and heat pump pumps are responsible for powering the system.


For more complex systems, the BAG³ Hybrid distribution module is available: for recessed or wall-mounted indoor installations, or recessed outdoor installations, in the 1 direct, 2 direct or 1 direct and 1 mixed configurations, equipped with self-modulating circulators low consumption (EEI≤0.20). The distribution module also acts as a hydraulic separator between the generators and the system circuits. The system is designed for connection to a single coil domestic hot water tank served by a heat pump, or to a double coil domestic hot water tank served by a heat pump and solar thermal, by installing the diverter valve kit.


- Simple and intuitive control panel with large backlit display, characterized by advanced management logics of the hybrid system, in order to guarantee maximum efficiency by favoring the most efficient heat source according to the external temperature. The panel allows the complete parameterization of the system, as well as the display of the operating status. Supplied with the heat pump, complete with bracket to be positioned directly inside the rooms.

  • Heating, cooling, and production of domestic hot water
  • Intelligent management of multiple energy sources: condensing boiler, solar thermal and heat pump
  • Large display for setting up and monitoring the entire system
RES split hybrid system - wall-hung solution

Range documentation

Type Description Language
Technical-commercial sheet Italian Download

Products

WALL-HUNG BOILERS

HEATING ONLY VERSION

20139526
RESIDENCE 20 IS
  • Documents
Type Language
BIM model English Download
DXF/DWG Drawing Italian Download
Energy Label English Download
Homologation Certificate Italian, English Download
Homologation Certificate Download
Installer Manual Download
Installer Manual Download
Installer Manual Italian Download
Installer Manual Italian Download
Installer + User Manual English, Romanian, Hungarian, Greek, Bulgarian, German Download
Installer + User Manual English, Romanian, Hungarian, Greek, Bulgarian, German Download
Installer + User Manual Italian Download
Installer + User Manual English, Romanian, Hungarian, Portuguese, Greek, Bulgarian Download
Installer + User Manual Italian, English Download
Installer + User Manual English, Romanian Download
User Manual Italian Download
User Manual Italian Download
Wall-hung split air-water heat pumps

single-phase version

20181792
FAMILY ES 5M
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download
20181795
FAMILY ES 7M
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download
20181796
FAMILY ES 9M
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download
20181797
FAMILY ES 12M
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download
20181805
FAMILY ES 15M
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download

three-phase version

20181803
FAMILY ES 12T
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download
20181806
FAMILY ES 15T
  • Documents
Type Language
BIM model English Download
Conformity declaration Italian Download
Conformity declaration Italian Download
Installer Manual Italian Download
User Manual Italian Download

Products to match your system

COMBINABLE HYBRID DISTRIBUTION MODULES

DISTRIBUTION MODULES WITHOUT SEPARATOR

20165227
MODULO IDRAULICO DISTR.IDR.IBRIDA 1 DIR

DISTRIBUTION MODULES WITH SEPARATOR

20130805
BAG3 HYBRID 1D
20130806
BAG3 HYBRID 2D
20130807
BAG3 HYBRID 1D+1M
20130808
IN-WALL INSTALLATION BOX

COMBINABLE STORAGE TANKS

20090056
7000 ACI 60 PLUS
20082450
7000 ACI 60 - 60 litre inertial buffer tank

COMBINABLE DHW TANKS

MONOVALENT TANKS

20124167
RBC 150 1S
20124168
RBC 200 1S
20124169
RBC 300 1S
20124170
RBC 430 1S
4383500
7200 300 HP
4383501
7200 HP 500

BIVALENT TANKS

20116675
Rbs 200 2S
20116335
Rbs 300 2S
20117339
Rbs 430 2S

ACCESSORIES FOR WALL-HUNG BOILERS

BUILT-IN UNIT

20082310
RECESSED UNIT M

RiCLOUD

20117399
RiCLOUD
20117359
RF-wireless boiler receiver
