HYDRONIC TERMINAL & HEAT RECOVERY UNITS


  • Catalogues
  • Search
  • Anti-counterfeiting
  • Search for BIM

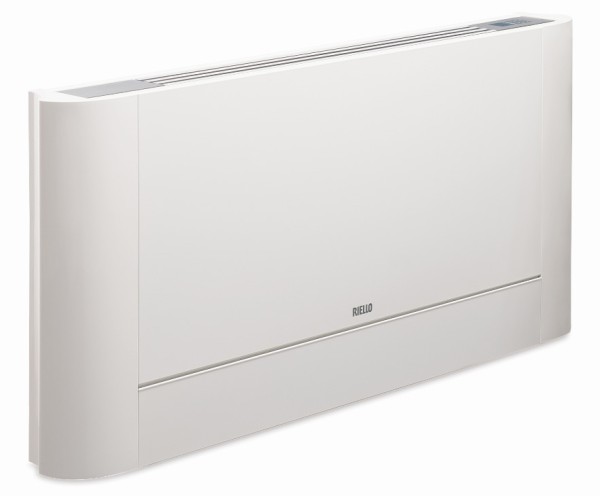

DESIGN INVERTER PLUS

DESIGN INVERTER PLUS is the TOP of what Riello has to offer for fan coils. It is ideal for providing superior comfort in heating mode.

DESIGN INVERTER PLUS unites, thanks to its exclusive operating principle, the convective and ventilating effect with the radiant effect of the front panel, thereby increasing the wellness of the room.

In addition to the radiating effect, the entire range is equipped with the DC Brushless Inverter motors. This technological solution provides a continuous variation from 0 to 100% of the air flow rate and as a result the heating and cooling capacity.

The DESIGN INVERTER PLUS very quickly heat and cool any area, with the possibility of selecting between two dedicated functions: PERFORMANCE for commercial needs, when high efficiency and high effectiveness are required, and COMFORT for residential needs, to ensure always maximum low-noise operation.

Thanks to the use of the DC Brushless motors, the DESIGN INVERTER PLUS save up to 50% on electricity compared to the fan coils with traditional motors (type ON/OFF). Just like the entire HELIOTERM range, the DESIGN INVERTER PLUS range has an ULTRA FLAT appearance, with a depth of just 13 cm and an automatic suction system.

The range is available in 5 models with outputs in cooling mode from 830 W up to 4560 W and in heating mode from 1150 W up to 4860 W.

The vast range of accessories and controls with touch DISPLAY support a wide range of applications. The versions that can be installed vertically with connections on the left.

The structure is made of galvanised sheet metal with sides made of ABS; the front delivery grille is made of aluminium.

– FULL FLAT with an automatic suction system

– Depth of 13 cm

– Terminal with radiating effect

– Easy to remove and clean the filters

– Touch Display commands

Tangential fan coils with radiant plate and Brushless inverter motor
DESIGN INVERTER PLUS

Range documentation

Type Description Language
Technical-commercial sheet Download
Technical-commercial sheet Download
Technical-commercial sheet Italian Download
Product Brochure/Depliant Download

Products

TECHNICAL DATA

WHITE FAN COIL WITH RADIANT HEAT PLATE AND AUTOMATIC AIR VENTILATION

20116258
DESIGN INVERTER PLUS 11B
  • Documents
Type Language
Conformity declaration Italian, English Download
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
Installer Manual Slovenian, Croatian Download
20116260
DESIGN INVERTER PLUS 21B
  • Documents
Type Language
Conformity declaration Italian, English Download
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
Installer Manual Slovenian, Croatian Download
20116261
DESIGN INVERTER PLUS 33B
  • Documents
Type Language
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
Installer Manual Slovenian, Croatian Download
20116263
DESIGN INVERTER PLUS 40B
  • Documents
Type Language
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
Installer Manual Slovenian, Croatian Download
20116264
DESIGN INVERTER PLUS 46B
  • Documents
Type Language
Conformity declaration Italian, English Download
Installer Manual Portuguese, English Download
Installer Manual Italian, English Download
Installer Manual Slovenian, Croatian Download
