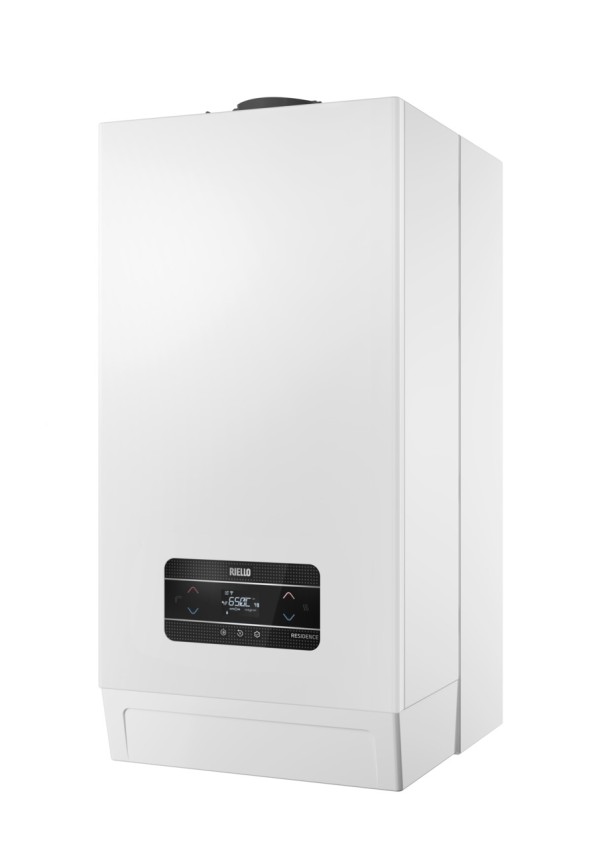

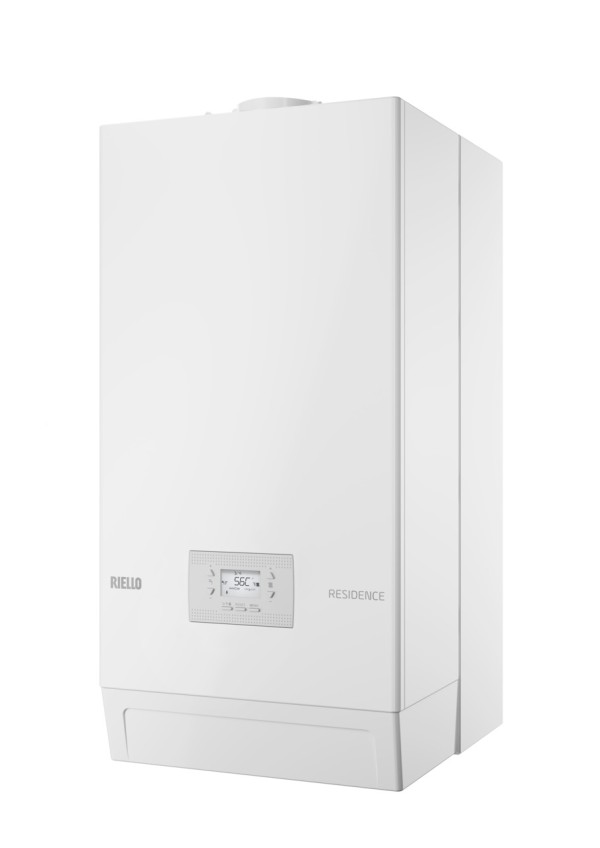

RESIDENCE HM AQUA

Residence HM Aqua is the condensing boiler with 30 litre stainless steel bi-tank storage tank, designed by Riello in the name of energy saving and efficiency.

Residence HM Aqua consists of a system composed of a combined 25 or 35kW boiler and a compact bi-tank that is distinguished by the simplicity of installation in just two steps: installation of the storage tank on the wall and the boiler on it.

The primary heat exchanger, entirely made of stainless steel, together with the optimised plate heat exchanger, for instantaneous DHW production when the storage tank is not needed, ensure maximum efficiency, reliability over time and high comfort. Compact dimensions and an intuitive user interface complete the Residence HM Aqua profile.

- 25 or 35 kW combi boiler with 30-liter stainless steel bi-tank, available with dedicated code.

- Ability to enable and disable boiler operation in conjunction with the DHW storage tank thanks to advanced machine electronics.

- Two-step installation simplicity: 1. installation of the bi-tank; 2. installation of the boiler on the storage tank.

- Robust, high-efficiency stainless steel primary condensing heat exchanger.

- Possibility of enabling and disabling boiler operation in conjunction with domestic hot water storage tank thanks to advanced machine electronics.

- Modern and intuitive 2.8'' touchscreen user interface with representative icons, multilingual texts and capacitive keys with acoustic "buzzer" confirmation.

- Wide 1:10 modulation range.

- Electrical protection degree IPX5D.

- Hydraulic unit with DIN standard sequence connections.

- Prepared for connection with Hi, Comfort T100 control.

- Designed to operate with mixtures of natural gas and hydrogen, up to a maximum of 20%.

- Gas conversion (Propane Air, LPG) selectable by electronic parameter.

  • Combined boiler with 30-liter stainless steel bi-tank
  • Robust, high-efficiency stainless steel primary heat exchanger
  • High 1:10 modulation
  • New-generation self-adaptive combustion control
  • Modern, intuitive digital user interface
  • Designed to operate with mixtures of natural gas and hydrogen, up to a maximum of 20%
  • Low pollutant emissions CLASS 6 (UNI EN 15502)
RESIDENCE HM AQUA

Range documentation

Type Description Language
Technical-commercial sheet Italian Download
Product Brochure/Depliant Italian Download

Products

TECHNICAL DATA

INSTANTANEOUS COMBINED HEATING AND DOMESTIC WATER VERSION

20222591
RESIDENCE HM AQUA 25 BIS
  • Documents
Type Language
Energy Label Italian Download
Energy Label Italian Download
Installer Manual English, Romanian, Greek Download
Installer + User Manual Italian Download
20222593
RESIDENCE HM AQUA 35 BIS
  • Documents
Type Language
Energy Label Italian Download
Energy Label Italian Download
Installer Manual English, Romanian, Greek Download
Installer + User Manual Italian Download

ACCESSORIES

SPECIFIC ACCESSORIES FOR COMMERCIAL SETS

20213360
DOSSERET BI-TANK - 25 kW
20213361
FITTINGS FOR BI-TANK- 25 kW
20213415
FLOW SWITCH KIT AND FITTINGS - 25KW (for composition WITH doser kit)
20213431
FLOW SWITCH KIT AND FITTINGS - 25 kW (for composition WITHOUT doser kit)
Type Language
Installer + User Manual Italian, English, Polish Download
20216906
LOW FITTING COVER

HYDRAULIC ACCESSORIES

20191518
Compact polyphosphate doser kit
Type Language
Installer + User Manual Italian, English Download
20158902
ErP high head circulator
20035644
Solar diverter mixing valve kit
20132005
Fitting kit with sanitary and gas taps
Type Language
Installer + User Manual Italian Download

MECHANICAL ACCESSORIES

20190324
Air filter
Type Language
Installer + User Manual Italian, English Download

COMPLEMENTARY ACCESSORIES

1220639
Limit thermostat for low temperature systems
1220559
External probe
Type Language
Installer Manual Italian, English Download
20097192
Condensate booster pump kit
1220599
Immersion probe
Type Language
Installer + User Manual Italian, English, German, French, Spanish, Portuguese, Hungarian, Polish, Turkish, Romanian Download

SPECIFIC FLUE SYSTEM

20129765
Fixed split system kit Ø80 mm
Type Language
Installer + User Manual Italian, Bulgarian, Czech, Greek, English, Spanish, French, Hungarian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Serbian Download
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch Download
20129175
Wall-hung collector Ø60/100 mm
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch Download
20129176
Telescopic wall-hung collector Ø60/100 mm
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch Download
20129177
Vertical collector Ø60/100 mm
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch Download
20129174
Vertical connection stub pipe kit Ø60/100 mm
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch, German Download
20129172
90° bend kit Ø60-100 mm for boiler start
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch, German Download
20134830
Split system kit with variable position air inlet
20129768
B23 flue gas exhaust adapter split Ø80 with air intake
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch Download
20129769
Adaptor kit B23 from da Ø60/100 up to Ø80 mm with air intake
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Hungarian, Romanian, Croatian, Serbian, Slovak, Slovenian, Russian, Czech, Turkish, Greek, Lithuanian, Polish, Bulgarian, Dutch Download
20190475
Compact adjustable splitter device kit from 60/100 mm to 80/80 mm
Type Language
Installer + User Manual Italian, English, French, Spanish, Portuguese, Polish, Hungarian, Romanian, German, Greek, Bulgarian, Serbian Download

You can also add to the product...

HI, COMFORT CONTROLS FOR DOMESTIC COMFORT

ROOM CONTROLS WITH BOILER REMOTE INTERFACE FUNCTION AND MANAGEMENT POSSIBILITY VIA APP

20193354
Hi, Comfort T100 Wi-Fi
20193352
Hi, Comfort T100
20193355
Hi, Comfort G100-W
20193356
Hi, Comfort G100-R
