Steel boiler with low combustion pollutant emission one-stage light oil burner. The body of the boiler is vertical and is covered in insulating and sound-proofing material.
The standard Insieme EVOe is available with an open chamber that can be converted into a sealed chamber with the accessory kit. Versions are available for heating only or combined with instantaneous domestic hot water production or with storage.
All models have a new electronic panel with backlit graphic display and five keys and LEDs for displaying the operating status.
The control system provides climatic adjustment, the management of the distribution of up to 3 zones using special accessory kits, and the regulation of the domestic hot water. The electronics also provide the possibility of remote management using a 0-10 V input or else with the Modbus protocol.
– Low sound emissions
– Easy and inexpensive to install. The delivery includes all the accessories for it to operate safely
– Easy to maintain: combustion chamber, flue gases manifold, control panel and hydraulic connections are can be easily accessed
– Low pollutant emissions, class 3 according to EN 267 (NOx≤100mg/kWh)
– Maximum operating pressure: 3 bar

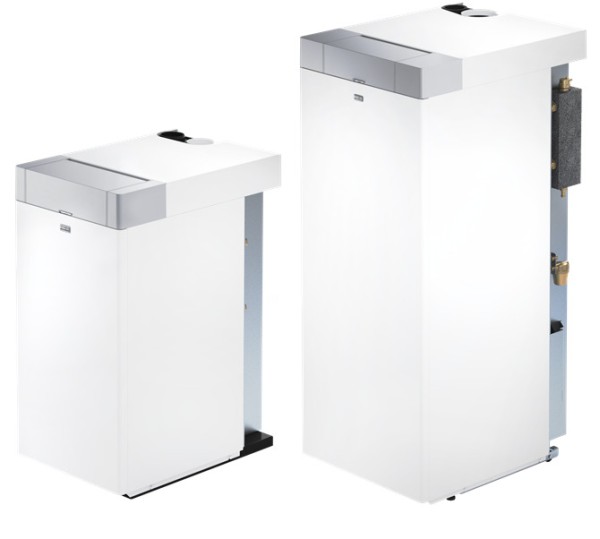

Insieme EVOe 25 LN: boiler for room heating.
Insieme EVOe 32 V LN: boiler for room heating. Equipped with 3-way valve for combination with an external domestic hot water storage cylinder (accessory kit).
Insieme EVOe 25/32 K LN: boilers for room heating and the instantaneous priority production of domestic hot water using an instantaneous plate heat exchanger with a diverter valve and control of the modulating pump (PWM).
Insieme EVOe 25 B/70 LN: boilers for room heating and the production of domestic hot water with a 70 litre integrated storage cylinder.
Insieme EVOe 32 B/110 LN: boilers for room heating and the production of domestic hot water with a 110 litre integrated storage cylinder.
LOW NOX VERSION - ONLY HEATING
LOW NOX VERSION - HEATING AND INSTANTANEOUS DOMESTIC HOT WATER PRODUCTION
LOW NOX VERSION - HEATING AND DOMESTIC HOT WATER PRODUCTION WITH STORAGE CYLINDER
