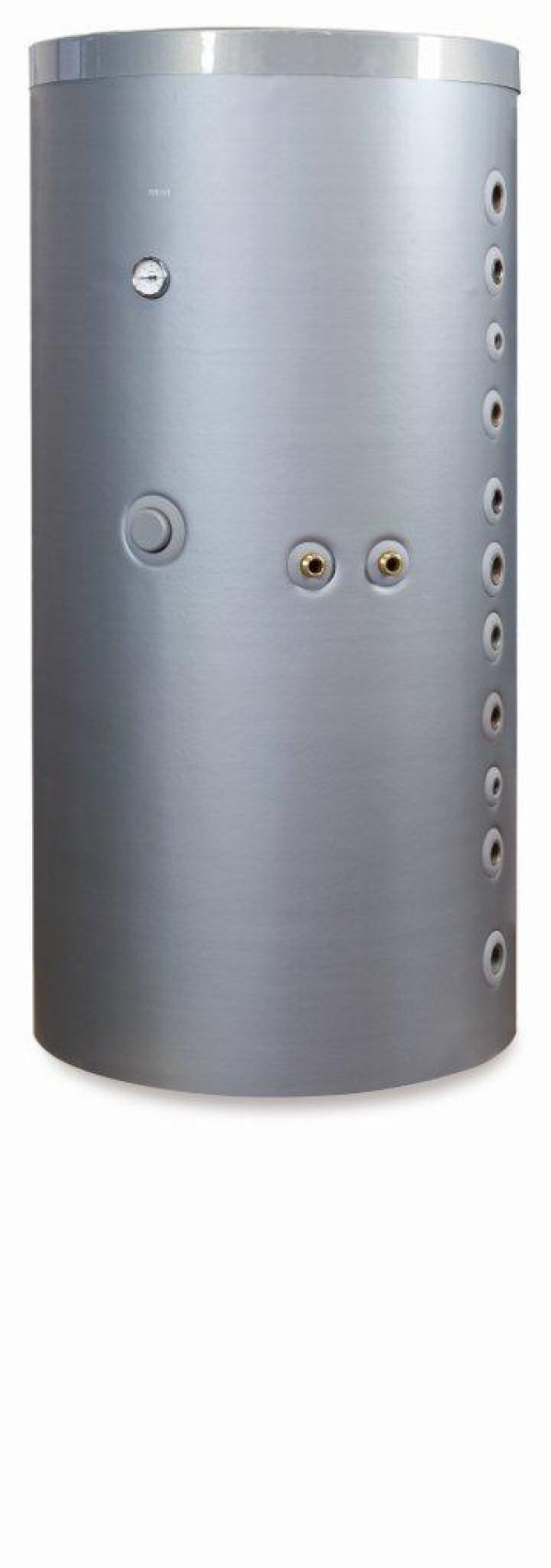

7200 KOMBISOLAR 2S

7200 KombiSolar2S is a combi storage tank designed for the instantaneous production of domestic hot water and the heating supplement. It contains three coils: one at the bottom for the solar circuit, one at the top for the heating circuit and one in stainless steel for the production of domestic hot water.

The rapid-exchange corrugated coil in stainless steel AISI 316L, for the production of domestic hot water (bacteriologically inert), ensures the absolute hygiene of water, while preventing bacteria from reproducing and limestone deposits from occurring, together with providing a fast, efficient and comfortable domestic hot water production.

The storage tank is specifically designed to enhance flexibility in installation through the synergetic and organic combination of thermal solar systems, traditional or biomass generators (also with open vessel) and heat pumps.

The presence of an integrated diffusion tube permits a high stratification of temperature along the solar tank height.

The CFC-free polyurethane insulation reduces heat losses and, as a consequence, enhances efficiency; the hard insulation makes the installation easier.

It is possible to use additional electrical resistances.

  • Combined storage tank
  • Instantaneous production of domestic hot water and heating supplement
7200 KOMBISOLAR 2S

Range documentation

Type Description Language
Technical-commercial sheet Download
Technical-commercial sheet Italian Download
Conformity declaration Download

Products

TECHNICAL DATA

20088789
7200 KOMBISOLAR 430 2S
  • Documents
Type Language
Conformity declaration English, Italian Download
Conformity declaration Italian Download
Conformity declaration English, Italian Download
Energy Label English Download
Installer + User Manual German Download
Installer + User Manual English Download
Installer + User Manual French Download
Installer + User Manual English Download
Installer + User Manual Italian Download
Installer + User Manual Dutch Download
Installer + User Manual French, German, Dutch Download
Installer + User Manual Italian Download
20088790
7200 KOMBISOLAR 550 2S
  • Documents
Type Language
Conformity declaration English, Italian Download
Conformity declaration Italian Download
Conformity declaration English, Italian Download
Energy Label English Download
Installer + User Manual German Download
Installer + User Manual English Download
Installer + User Manual French Download
Installer + User Manual English Download
Installer + User Manual Italian Download
Installer + User Manual Dutch Download
Installer + User Manual French, German, Dutch Download
Installer + User Manual Italian Download
20145329
7200 KOMBISOLAR 750 2S
  • Documents
Type Language
DXF/DWG Drawing Italian Download
Energy Label English Download
Energy Label English Download
Installer Manual Italian, English Download
Installer + User Manual English Download
Installer + User Manual Italian Download
Installer + User Manual French, German, Dutch Download
20145332
7200 KOMBISOLAR 1000 2S
  • Documents
Type Language
DXF/DWG Drawing Italian Download
Energy Label English Download
Energy Label English Download
Installer Manual Italian, English Download
Installer + User Manual English Download
Installer + User Manual Italian Download
Installer + User Manual French, German, Dutch Download
