CSV R

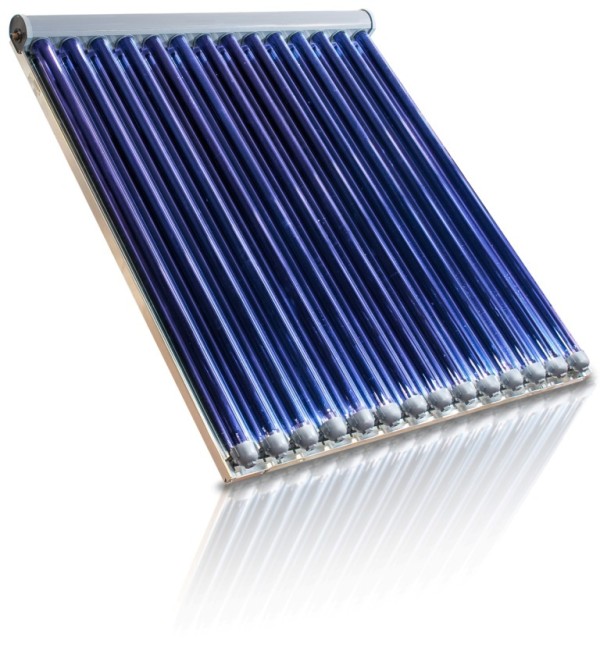

Solar collectors CSV 25 R and CSV 35 R have respectively 14 and 20 vacuum double-walled glass Sydney tubes, containing a U-shaped copper pipe, which is mechanically fixed to an aluminium circumferential absorber, whose external surface is provided with the selective absorbing coat.

Copper pipes are connected in parallel and the heat-transfer liquid runs through them going downwards and then rising back again while absorbing heat from the direct solar irradiation reflected by a CPC mirror (Compound Parabolic Concentrator).

The double-walled glass tube contains a vacuum thermal insulation called “termos", ensuring high performances even in the event of sudden changes between the average operating temperature of the heat-transfer liquid and the ambient temperature, which are typical of those areas with very cold weather conditions or industrial applications.

The solar collector is provided with hydraulic fittings to be tightened on Ø18 pipes; it is possible to connect up to 6 collectors in series. Glass tubes and CPC reflecting mirror are easy to replace and do not require to empty the solar circuit.

The solar collector CSV R complies with the EN12975 directive and is Solar Keymark certified.

A wide range of accessories and fixing elements is available to meet all installation requirements.

  • Vacuum tube solar collectors for vertical installation (2,77 m2 for 14 tubes and 3,91 m2 for 20 tubes)
  • U-shaped copper exchanger
  • Double-wall vacuum glass tubes (Sydney type)
CSV R

Range documentation

Type Description Language
Technical-commercial sheet Download
Technical-commercial sheet Download
Technical-commercial sheet Download
Technical-commercial sheet Italian Download
Conformity declaration Download

Products

TECHNICAL DATA

20023353
CSV 25 R
  • Documents
Type Language
Conformity declaration Italian Download
Conformity declaration Italian, English Download
DXF/DWG Drawing Italian Download
Homologation Certificate Download
Installer Manual French Download
Installer Manual German Download
Installer Manual English Download
Installer Manual Dutch Download
Installer Manual Italian Download
Installer Manual Italian Download

20028583
CSV 25 R X5
  • Documents
Type Language
Conformity declaration Italian Download
DXF/DWG Drawing Italian Download
Installer Manual Italian Download
Installer Manual French Download
Installer Manual German Download
Installer Manual English Download
Installer Manual Dutch Download
Installer Manual Italian Download
20023416
CSV 35 R
  • Documents
Type Language
Conformity declaration Italian Download
Conformity declaration Italian, English Download
DXF/DWG Drawing Italian Download
Homologation Certificate Download
Installer Manual French Download
Installer Manual German Download
Installer Manual English Download
Installer Manual Dutch Download
Installer Manual Italian Download
20028584
CSV 35 R X5
  • Documents
Type Language
DXF/DWG Drawing Italian Download
Installer Manual French Download
Installer Manual German Download
Installer Manual Italian Download
Installer Manual English Download
Installer Manual Dutch Download
Installer Manual Italian Download
