SOLAR THERMAL PANELS AND CYLINDERS

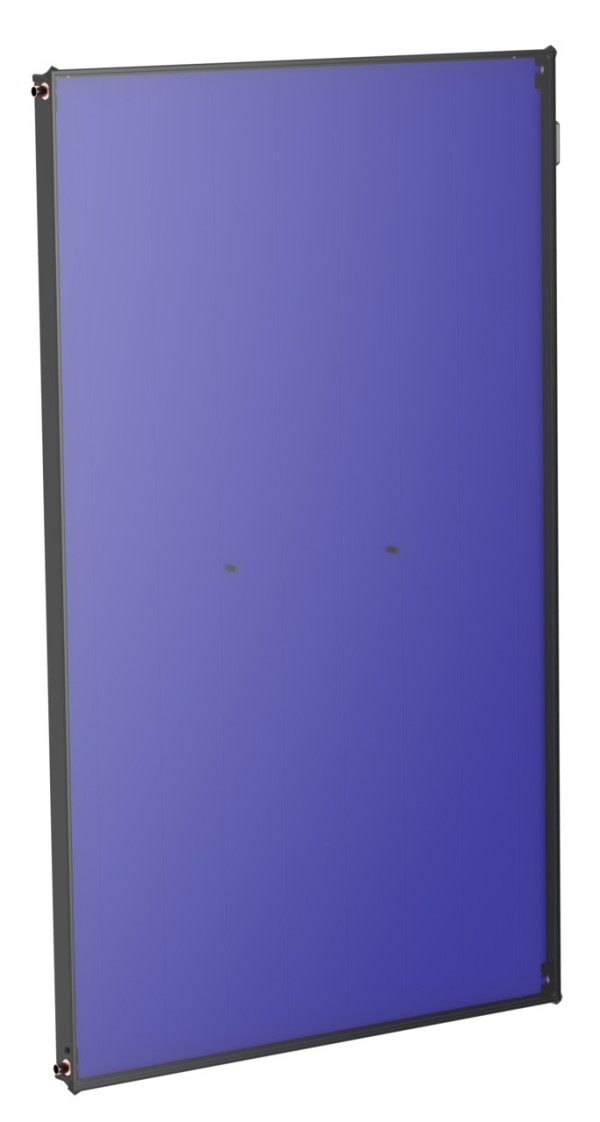

RPS 25/4 A
The solar collector RPS 25/4 A can be used for vertical installations.
It is equipped with an aluminum absorber plate with high selective finishing in TiNOx Energy Al that allows 95% energy absorption on the surface and reduce its emission to 4%. On the plate are welded harp-shaped pipes through which the heat-transfer fluid runs.
The high transparency sun glass guarantees high transmissivity.
Along with the glass wool insulation, that is 30 mm thickness, guarantees high efficiency even in case of bad weather conditions.
It is possible to connect in series up to 10 panels in vertical installations.
A wide range of accessories and fixing systems is available to ensure maximum installation flexibility.
The solar collector complies with EN 12975, ISO 9806 and is Solar Keymark certified.
5 year warranty.
- 4 Hydraulic compression fittings of 22mm
- Possibility of connecting in series up to 10 collectors vertically
- Solar Keymark certificate
- 5-year warranty for solar panel
Products
Vertical flat solar panels2,5 m2 collectors
