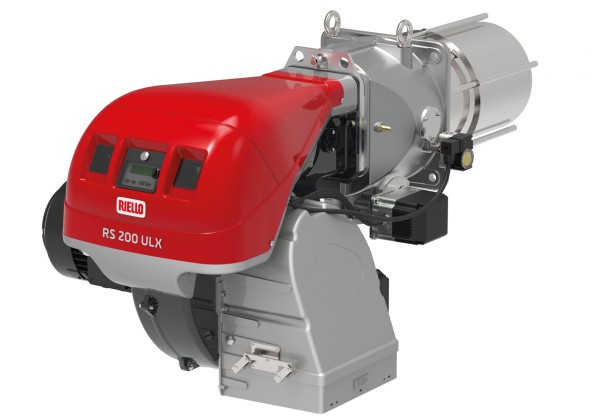

RS 68÷200/E ULX

"Thanks to many years of experience in the design and manufacture of Burners, Riello has developed a new range of high power burners, the New RS ULX Series, based on ULX (Internal gas Recirculation) low emission technology, suitable to achieve extremely Low NOx emission performance, lower than 40 mg/Nm3 @ 3% O2, without any need of FGR system, with proper combustion chamber dimensions; for specific applications.

The RS/E ULX burners series operation uses a new combustion technology developed by Riello that provides excellent permormance of Low NOx emission, that help to meet the strictest regulations.

An integrated Digital Burner Management System, manages the air-fuel ratio by independent servomotors in order to obtain a perfect output control and to assure a correct low polluting combustion and a safe operation on all modulation ranges.

The new RS/E ULX range combines exceptional Ultra Low NOx combustion performance to the consolidated features of robustness and

reliability of the RS series.

The monoblock configuration allows having all the components integrated in a compact size, in order to facilitate and make the installation and

maintenance extremely easy."

    "
  • Ultra low NOx emission performance, lower than 40 mg/Nm3 @ 3% O2, without any need of FGR system, with proper combustion chamber dimensions;
  • Innovative patented new Ultra Low NOx combustion technology;
  • High reliability of operation and ignition;
  • Operation and maintenance in line with standard diffusive flame burners.
  • "
RS 68÷200/E ULX

Range documentation

Type Description Language
Technical-commercial sheet SERIE RS 68-120-160-200 ULX English Download
Technical-commercial sheet Brochure ULX English Download
